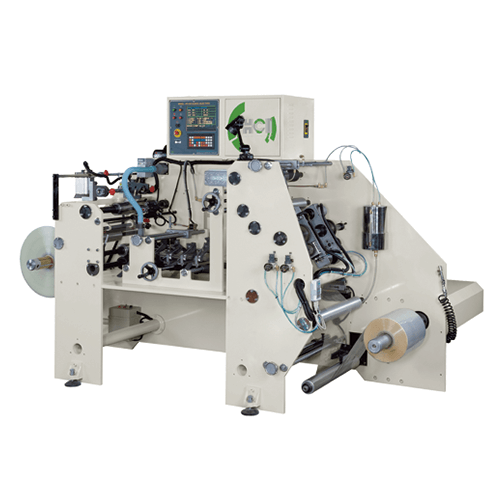

FP-250 High Speed Glue Seaming Shrink Sleeve Machine
HCI CONVERTING EQUIPMENT · SHRINK SLEEVE
The FP-250 is designed for the high-speed center seaming of shrink sleeve materials such as PVC, PS, PET and POF. With its heavy-duty frame, AC motor + inverter drive, magnetic powder brake unwind, sleeve width adjustment device (no forming plate required for widths above 50 mm), automatic solvent flow system and load-cell rewind, it delivers stable and economical seaming. It is managed by a color LCD touch-screen micro-computer control system. As the Türkiye distributor, GMG Technic handles sales, installation, commissioning and technical support.
CENTER SEAMING
PVC / PS / PET / POF
AUTOMATIC SOLVENT
Speed-synced flow
LCD TOUCH-SCREEN
Micro-computer control
Let’s plan the FP-250 configuration for your solvent shrink sleeve seaming line together.
Production Advantages
- Solvent Seaming and Automatic Flow Control — The solvent flow adapts automatically to the machine speed; stable solvent seaming is achieved with disc and wick type applicators.
- Forming Without a Forming Plate — No forming plate is required for sleeve widths above 50 mm; setup is easier and production cost is reduced.
- Stable Rewind (Load Cell) — Load-cell rewind tension control; it provides stable rewinding without re-adjustment when speed and diameter change.
- Fast Roll Change — Cantilever-type 3″ air-shaft unwind and rewind; roll changes are performed quickly.
- Micro-Computer Control — Color LCD touch screen; automatic unwind/rewind tension control, rewind length setting and 99-recipe memory.
Application Areas
- PVC / PS / PET / POF shrink sleeve seaming
- Center seam sleeve production
- Beverage packaging sleeve labels
- Cosmetic product sleeve labels
- Food packaging sleeve labels
- Pharmaceutical packaging sleeve labels
- Width-controlled sleeve seaming
- High-speed solvent seaming

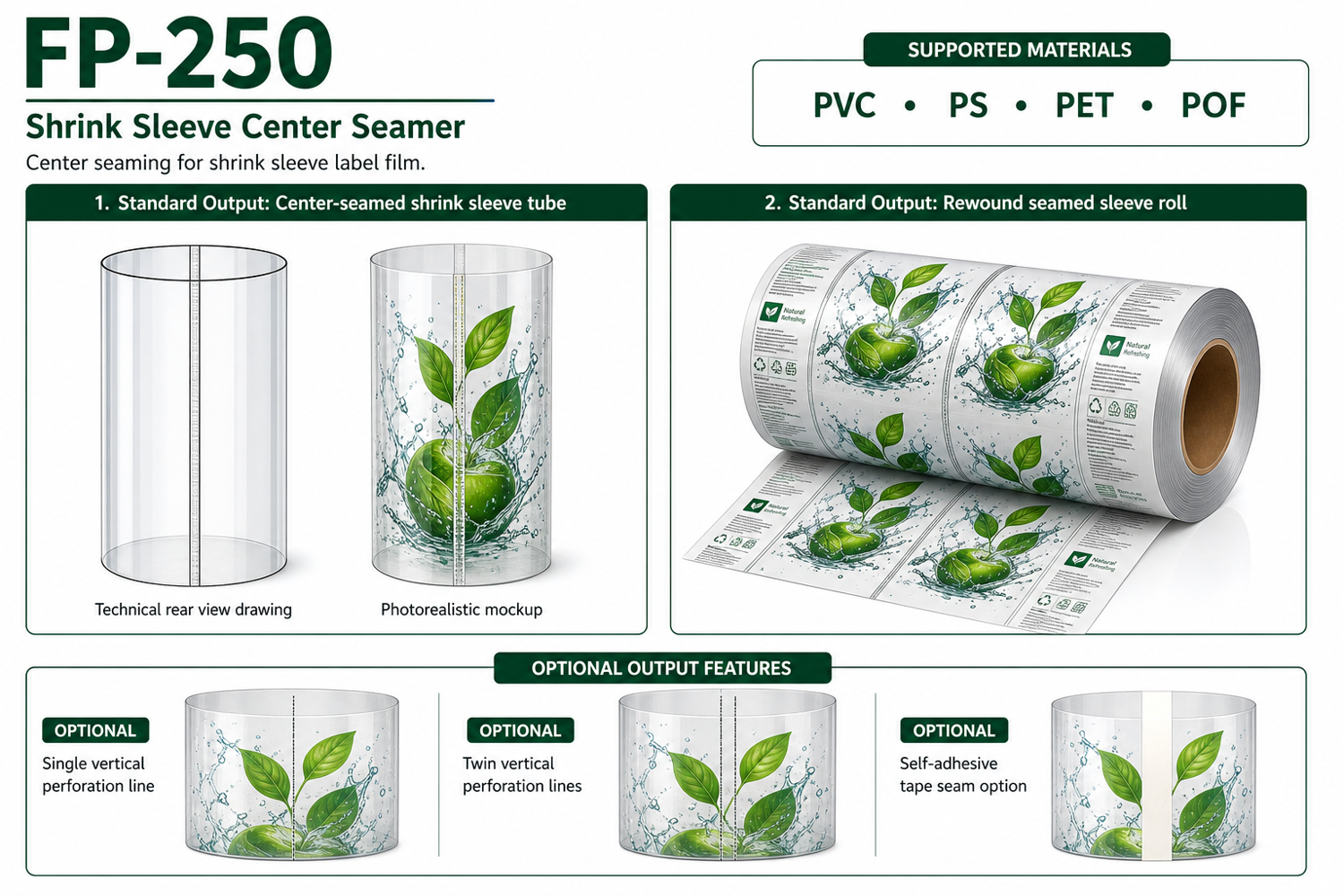

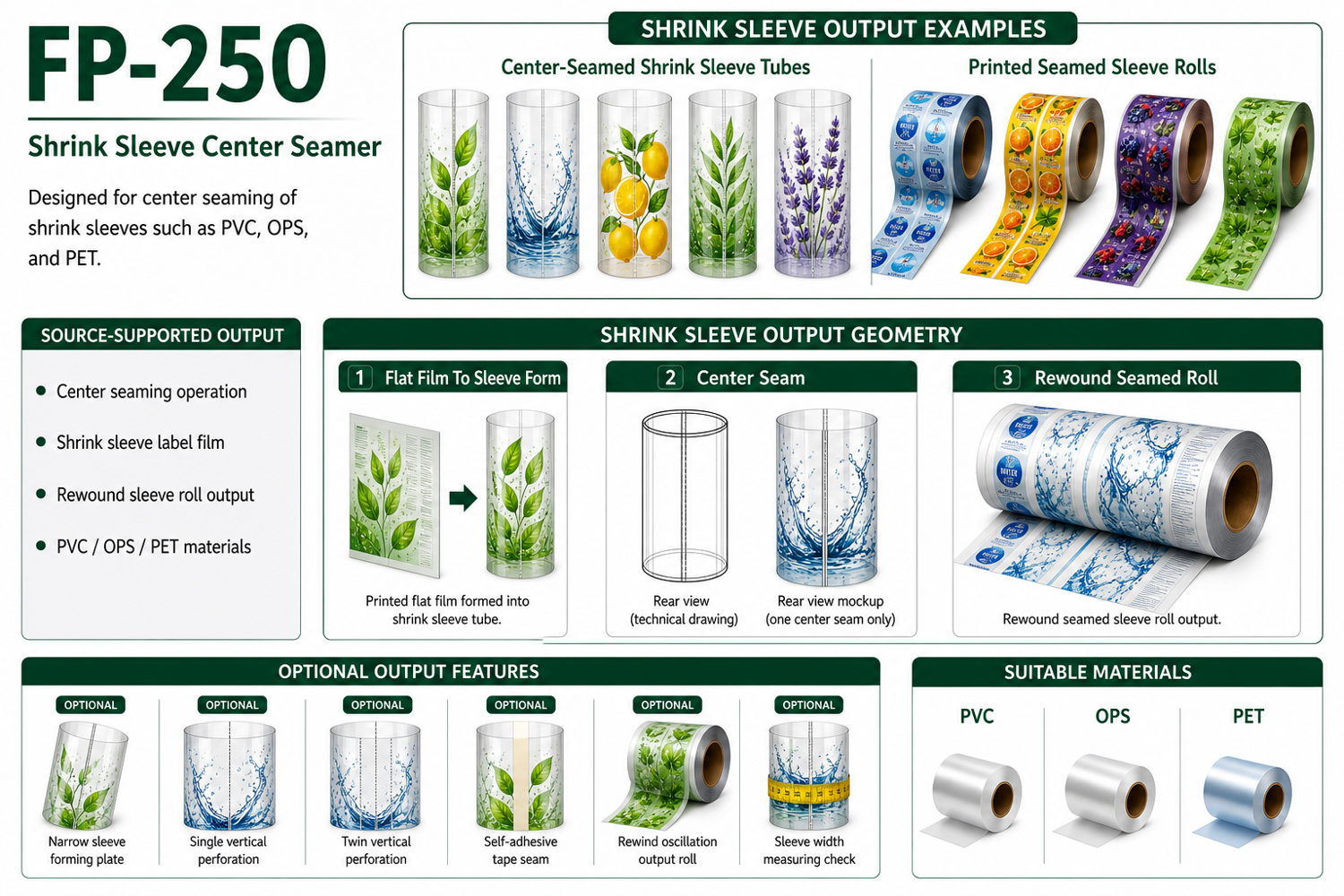

What is the FP-250?
High-speed shrink sleeve solvent seaming machine
The FP-250 is a high-speed sleeve seaming machine designed for the center seam seaming of PVC, PS, PET and POF shrink sleeve labels. It performs solvent seaming with disc and wick type glue applicators; the solvent flow adapts automatically to the machine speed.
No forming plate is required for sleeve widths above 50 mm. With load-cell rewind tension control and magnetic powder brake unwind tension control, it delivers stable production at high speed.
FP-250 Gallery
FP-250 machine and process images
Technical Features
The machine’s operating principle and core technical features
Unwind and Web Guiding
Cantilever-type unwind stand, 3″ air shaft and EPC web guider for precise film guiding; the magnetic powder brake controls unwind tension.
Sleeve Forming
Sleeve width adjustment unit and modular acrylic forming plate; forming is performed without a forming plate for widths above 50 mm.
Solvent Seaming Process
Pneumatic stainless glue tank + disc (before forming) and wick (after forming) applicators for solvent seaming; flow adapts automatically to speed, with a drying blower for fast drying.
Drive System
AC 3HP main drive + inverter + steel/rubber nip roller + meter counter for stable web flow.
Rewind and Tension Control (Load Cell)
Cantilever rewind stand, 3″ air shaft and load-cell rewind tension control; static eliminator for trouble-free rewinding.
PLC / Micro-Computer Control
8″ color LCD touch screen; automatic unwind/rewind tension control, material-out alarm/auto-stop and 99-recipe memory.
Technical Specification
FP-250 technical values (FP-300 width variant available)
FP-250 / FP-300 / FP-400 Series Variants
Same glue/solvent seaming platform; difference = sleeve width
Standard Equipment
FP-250 standard configuration (XLS Standard Accessories)
Standard Components with Images

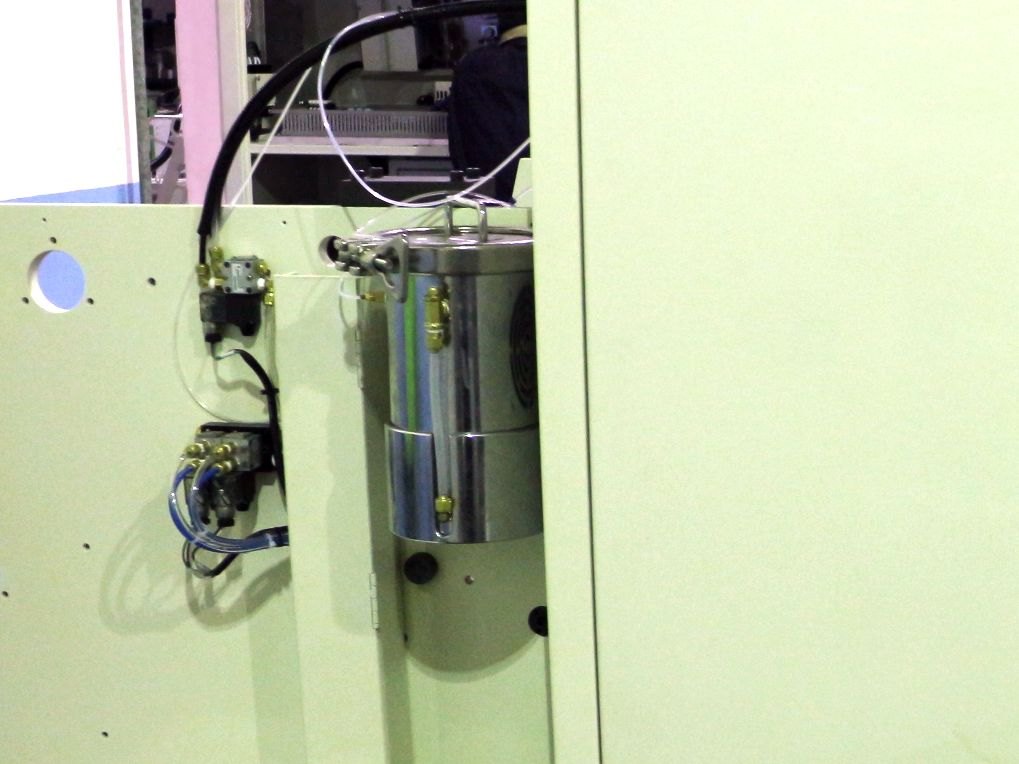

Pneumatic Stainless Glue Tank
Pneumatic pressurized stainless steel glue tank.
Disc Type Glue Applicator
Disc type glue applicator before forming + flow adjustment.

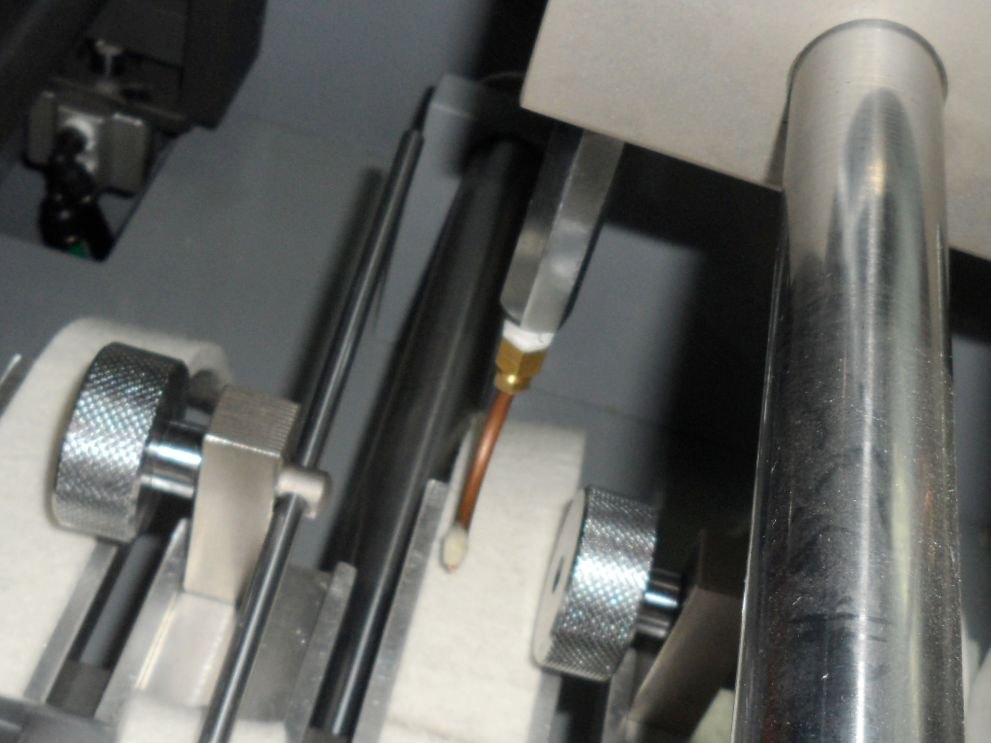

Wick Type Glue Applicator
Wick (felt) type glue applicator after forming + position adjustment.
PLC Control System
8″ color LCD touch screen; automatic tension, runout alarm, 99 recipes.
Other Standard Equipment
Cantilever / Floating Unwind Stand
3″ air shaft + EPC web guider + powder brake 2.5 kg/m (unwind tension).
Sleeve Forming
Width adjustment + modular acrylic forming plate + drying blower ¼HP + lamp.
Drive System
AC 3HP + inverter + steel/nip roller + meter counter.
Cantilever Rewind Stand
3″ air shaft + load cell + powder clutch 2.5 kg/m (rewind tension).
Static Eliminator
Eliminates static electricity on the seaming line.
Tool Kit
Tool kit and operation manual.
Modular Options
Configured according to your line requirements
Modular Options with Images

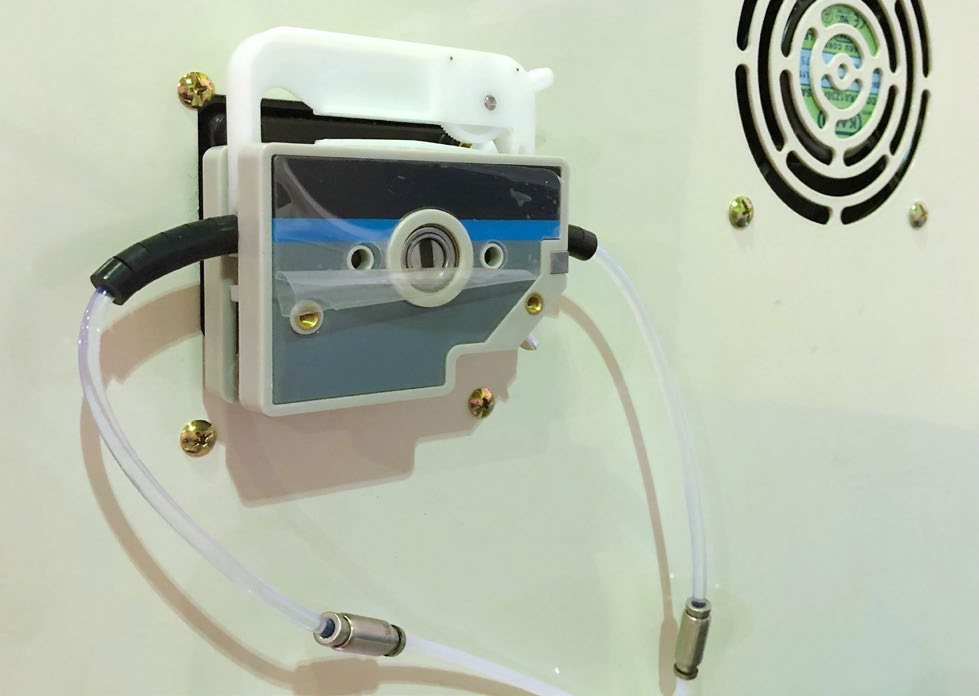

Upgrade to Needle Type Solvent Application
Needle type solvent application with peristaltic pump; stable above 80 m/min, 1.0–2.5 mm seam width.

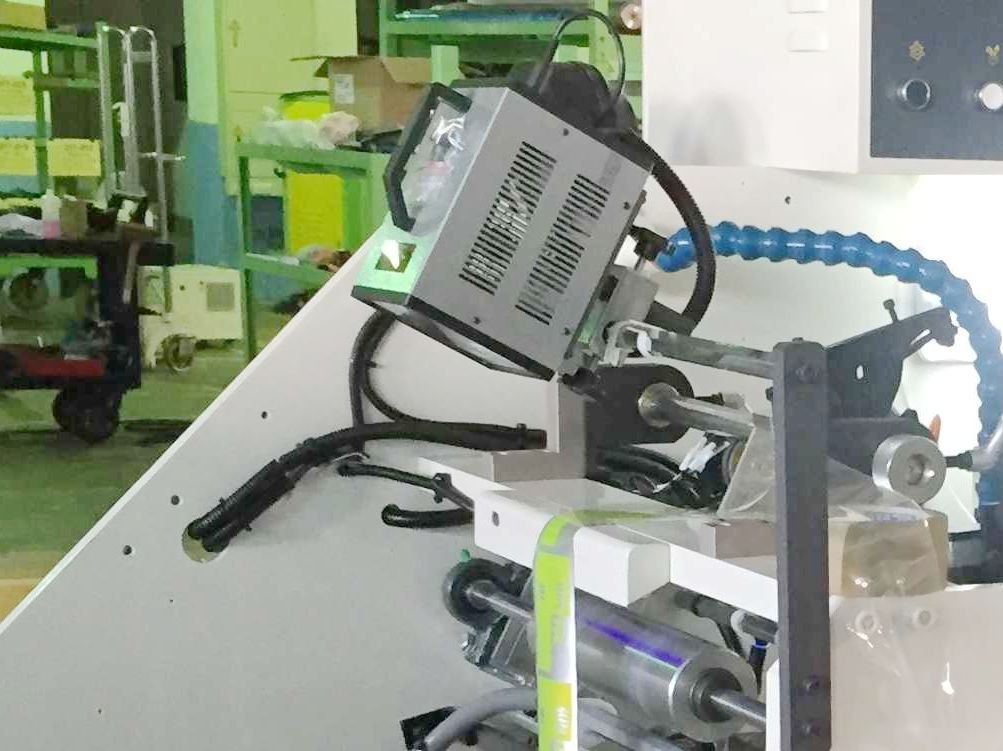

Stroboscope
Stroboscope with photocell; visual inspection of the running sleeve.
Hot Melt Glue Coating
Hot melt glue coating unit for non-solvent seaming.

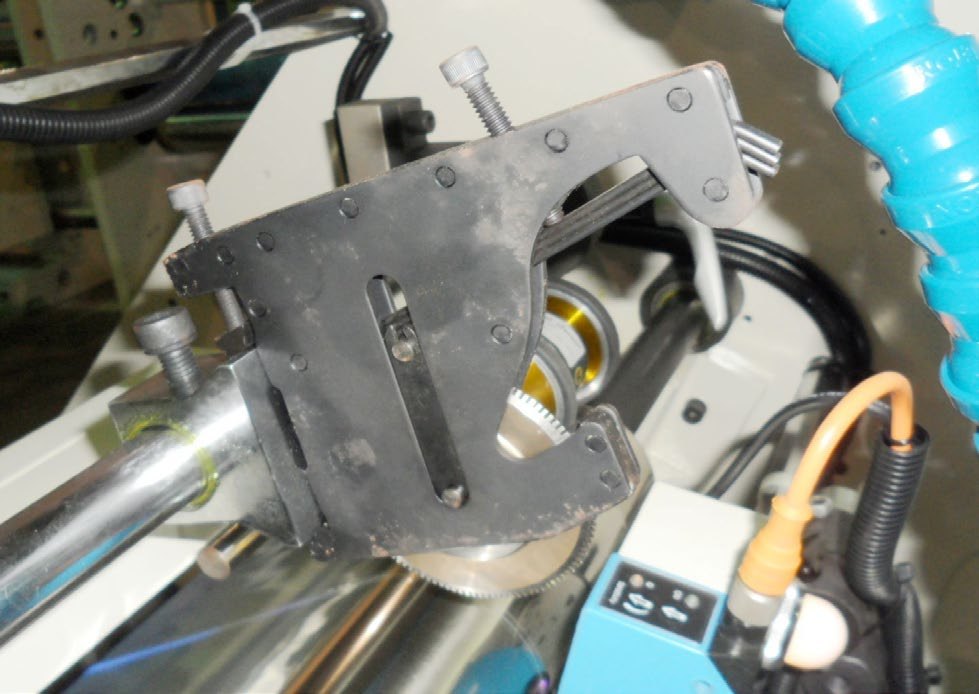

Vertical Continuous Perforation (After Sleeve)
70° hard roller + frame & coupling + 1 mm pitch blade.
Rewind Oscillation Unit
Right/left oscillation for even reel rewinding.
Double Line Vertical Perforation (Before Forming)
Double line vertical continuous perforation before forming.

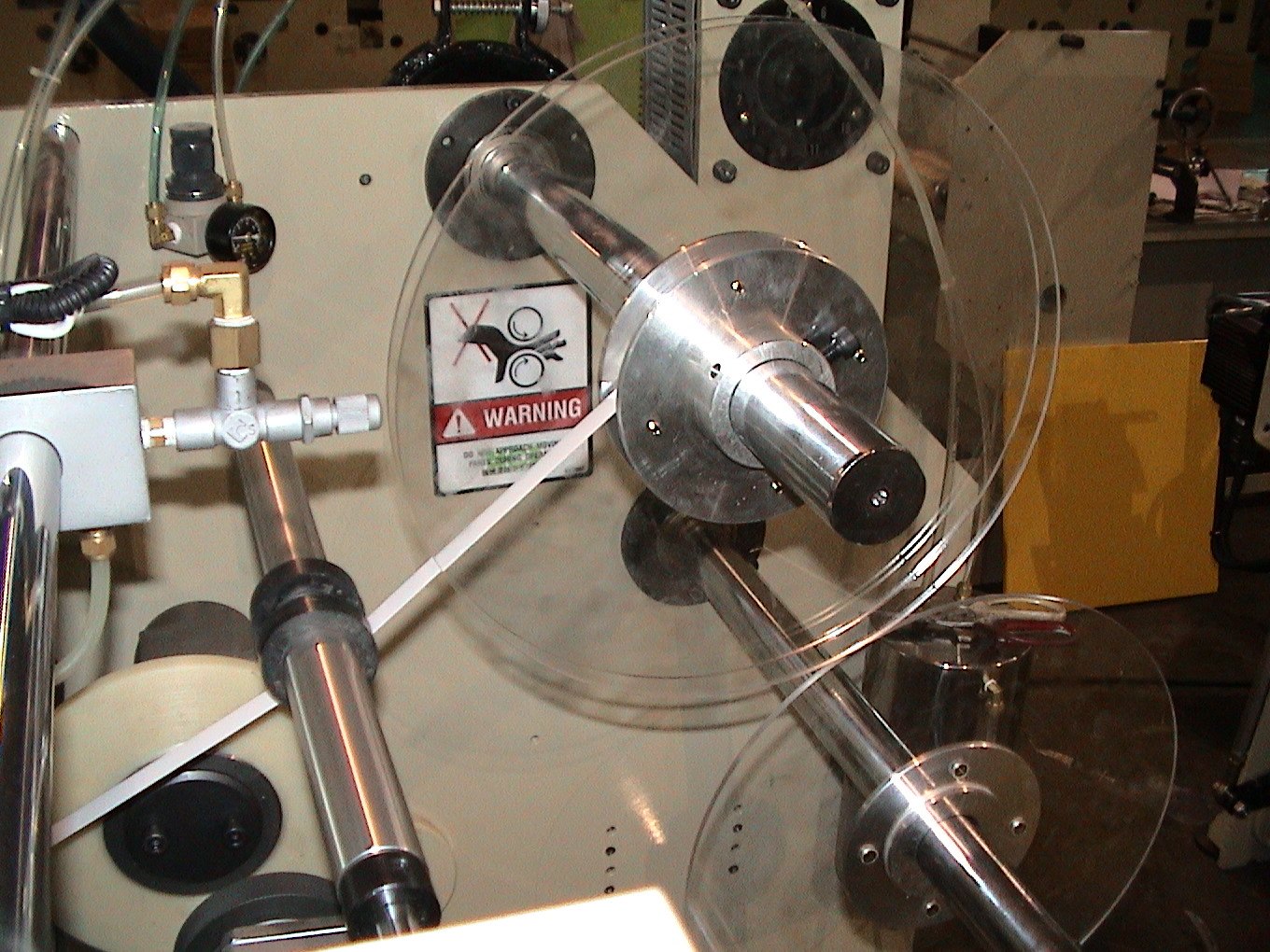

Self-Adhesive Tape Taping
Tape core 3″ + tape outer diameter 300 mm + carrier liner rewinder.
Ultrasonic In-Line Sleeve Width Measurement
35–250 mm measurement + 2 ultrasonic sensors + out-of-tolerance alarm/stop.
In-Line Phosphor Detection System
Phosphor + photocell + UV inspection lamp for monitoring seam continuity.

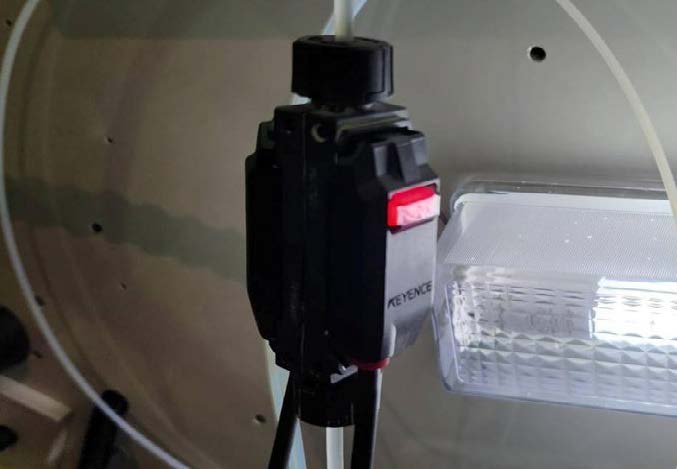

Solvent / Glue Flow Detection System
Clamp-on sensor monitoring micro flow from outside the pipe; solvent flow is monitored.
Other Modular Options
German EPC (E+L) Web Guide
German (E+L) EPC web guide option in place of the standard EPC.
Forming Plate (<50mm)
Forming plate option for sleeve widths below 50 mm (dimension on request).
Other Sleeve Models

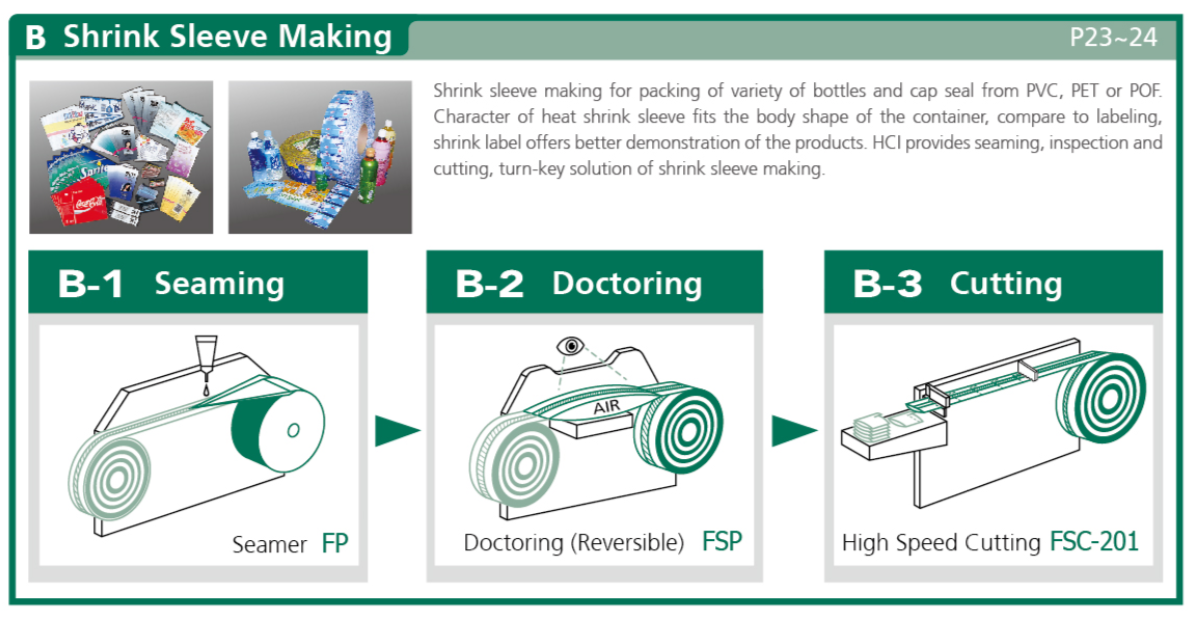

Other HCI models that complement your shrink sleeve line
FP-X250-2Turret SeamingTurret rewind solvent seaming; automatic roll change.
FSC-201 / 301 / 501Shrink Label CuttingServo high-speed PVC shrink sleeve cutting series.
FSP-250-2Rewind & InspectionBi-directional sleeve rewinding and inspection.Sleeve-EyeWidth MeasurementShrink sleeve width measurement/inspection system.Complementary Machines
HCI solutions that complete the sleeve production line
Türkiye Distributor
HCI Converting Equipment Türkiye sales point.
Installation & Commissioning
On-site installation, alignment and initial parameter calibration.
Operator Training
Operator and maintenance personnel training after commissioning.
Spare Parts & Technical Support
Long-term spare parts supply and remote / on-site service.
BROCHURE & TECHNICAL INFORMATION
FP-250 Detailed Technical Information and Project Assessment
Get in touch with us for your solvent shrink sleeve seaming line configuration.
The FP-250 is a product of HCI Converting Equipment Co., Ltd. (). GMG Technic Makina San. ve Tic. Ltd. Şti., as the HCI Converting Equipment Türkiye distributor, handles sales, installation, commissioning, operator training, spare parts supply and technical service.
