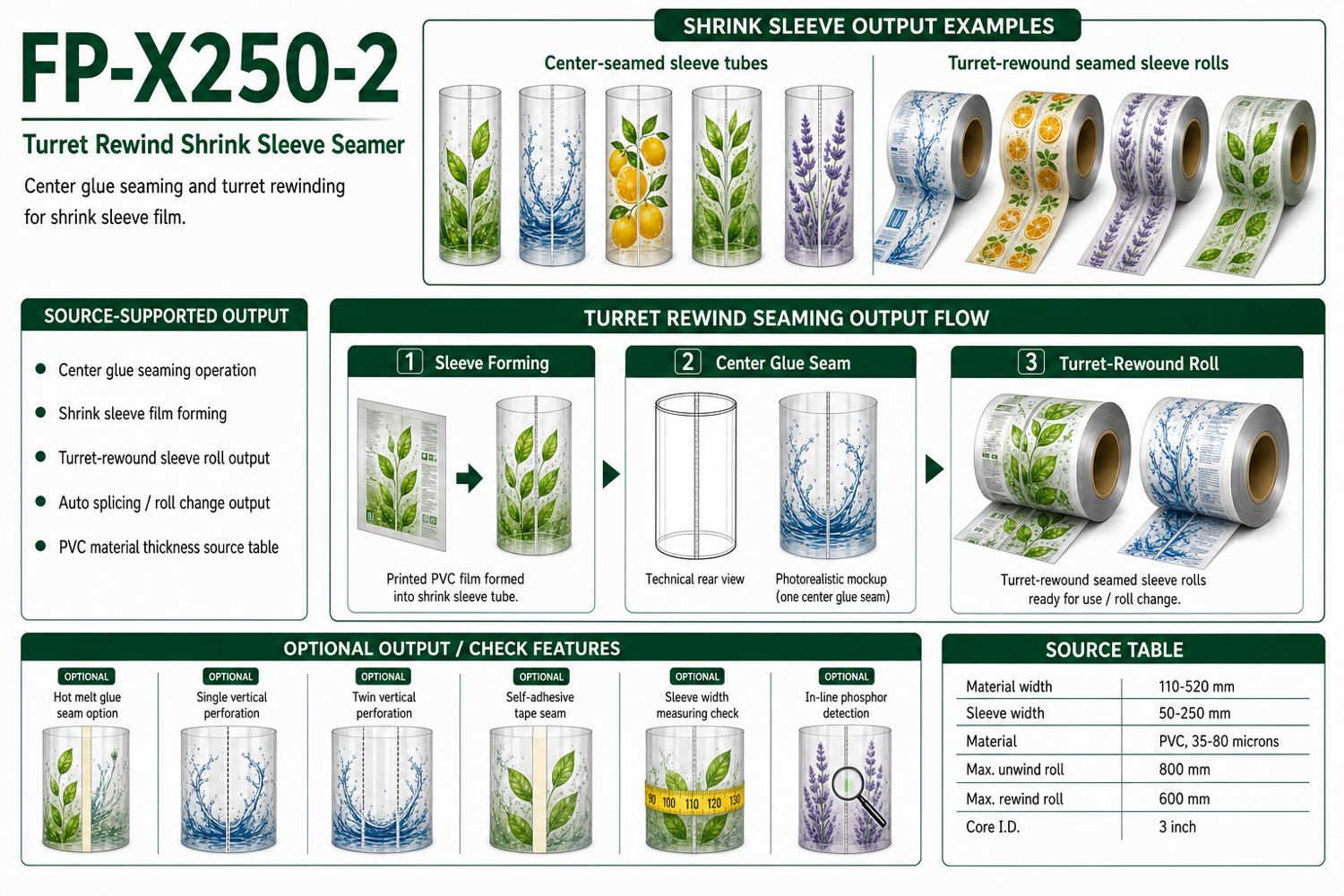

FP-X250-2 Solvent Seaming Shrink Sleeve Machine
HCI CONVERTING EQUIPMENT · SHRINK SLEEVE
The FP-X250-2 is HCI's high-speed turret rewind shrink sleeve seaming machine, meeting the requirements of high-speed production, automatic roll change and in-line inspection. With automatic seaming, in-line layflat width and automatic solvent detection, it combines the seaming and quality control processes in a single machine. The newly developed precision needle-type solvent feeding system increases the stability of solvent application. As the Türkiye distributor, GMG Technic carries out the sales, installation, commissioning and technical support processes.
TURRET REWIND
Automatic roll change
NEEDLE-TYPE SOLVENT
Precision pump feeding
2-IN-1
Seaming + quality control
Let us plan the FP-X250-2 configuration together for your turret rewind shrink sleeve seaming line.
Production Advantages
- Solvent Seaming and Needle-Type Application — A laboratory-grade peristaltic-pump needle-type solvent application system keeps the solvent volume stable and automatically synchronizes with the running speed.
- Turret Rewind and Automatic Roll Change — Dual rewind air-shaft turret rewinder; once the preset length/diameter is reached it rotates and splices automatically (auto splice), reducing downtime.
- Seaming + Inspection in a Single Flow — The seaming and inspection/doctoring processes are consolidated on a single line, reducing the need for a separate machine.
- Online Control and Solvent Detection — Ultrasonic layflat width and solvent detection; warning or automatic stop when out of tolerance.
- Stable Tension and Web Flow — Load-cell and dancer-roller automatic unwind/rewind tension control eliminates the tension fluctuations caused by auto-splice.
Application Areas
- PVC shrink sleeve seaming
- PET / PETG shrink sleeve seaming
- Beverage packaging sleeve label
- Cosmetic product sleeve label
- Food packaging sleeve label
- Pharmaceutical packaging sleeve label
- High-speed sleeve seaming + rewinding
- Layflat / width-controlled sleeve production
What is FP-X250-2?
High-speed turret rewind shrink sleeve seaming machine

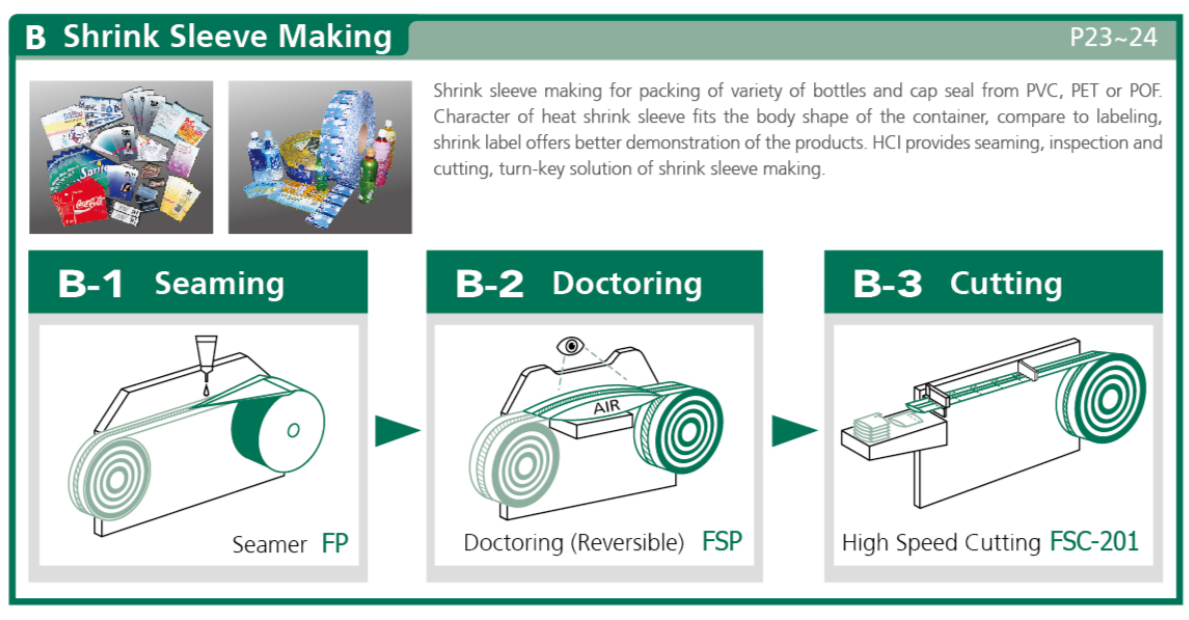

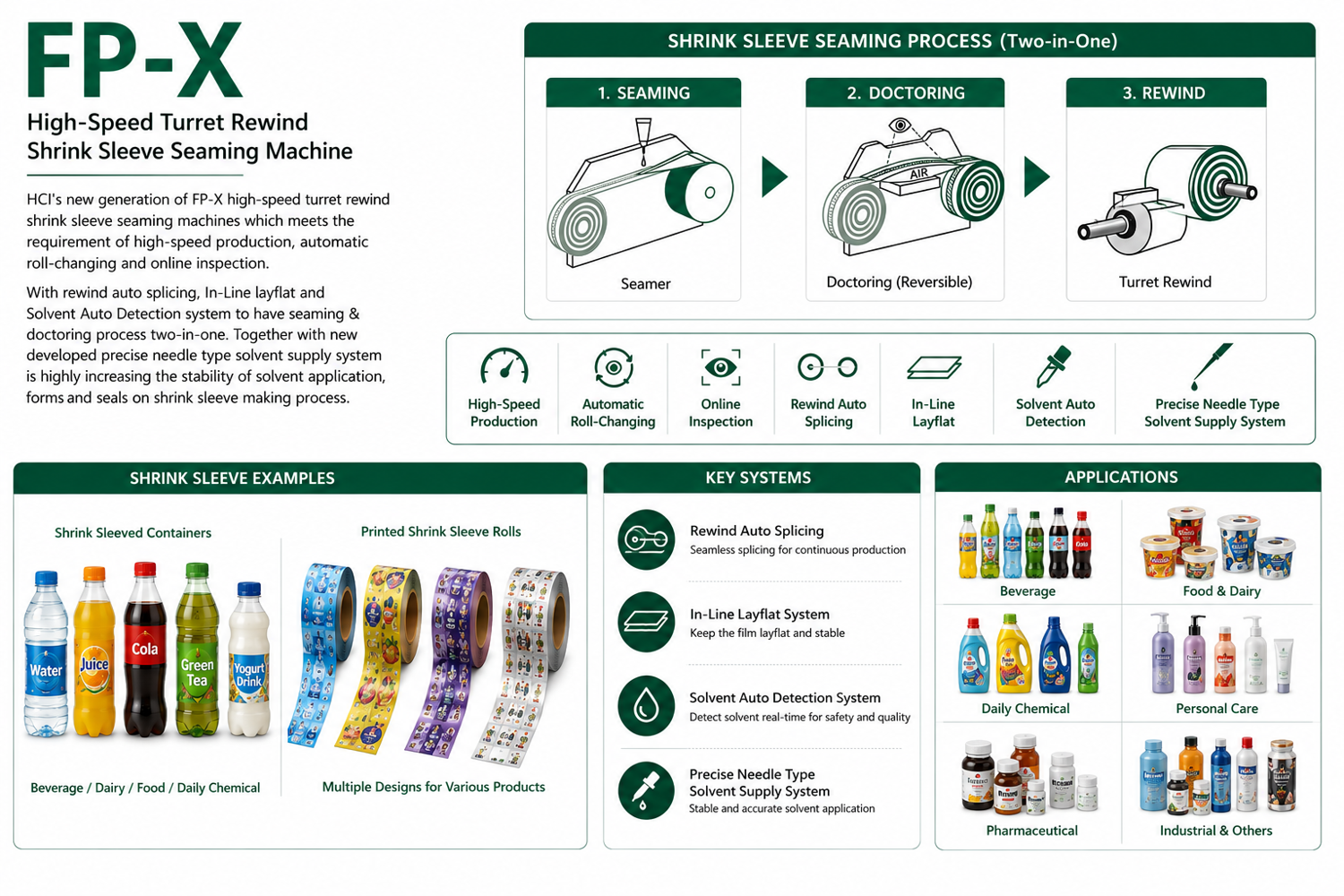

The FP-X250-2 is a high-speed turret rewind shrink sleeve seaming machine. With automatic roll change, online inspection, in-line layflat and automatic solvent detection, it consolidates the seaming and inspection/doctoring process in a single flow.
The needle-type precision solvent feeding system keeps solvent application stable during sleeve forming and seaming. Load-cell and dancer-roller tension control eliminates the tension fluctuations caused by auto splice, ensuring stable production at high speed.

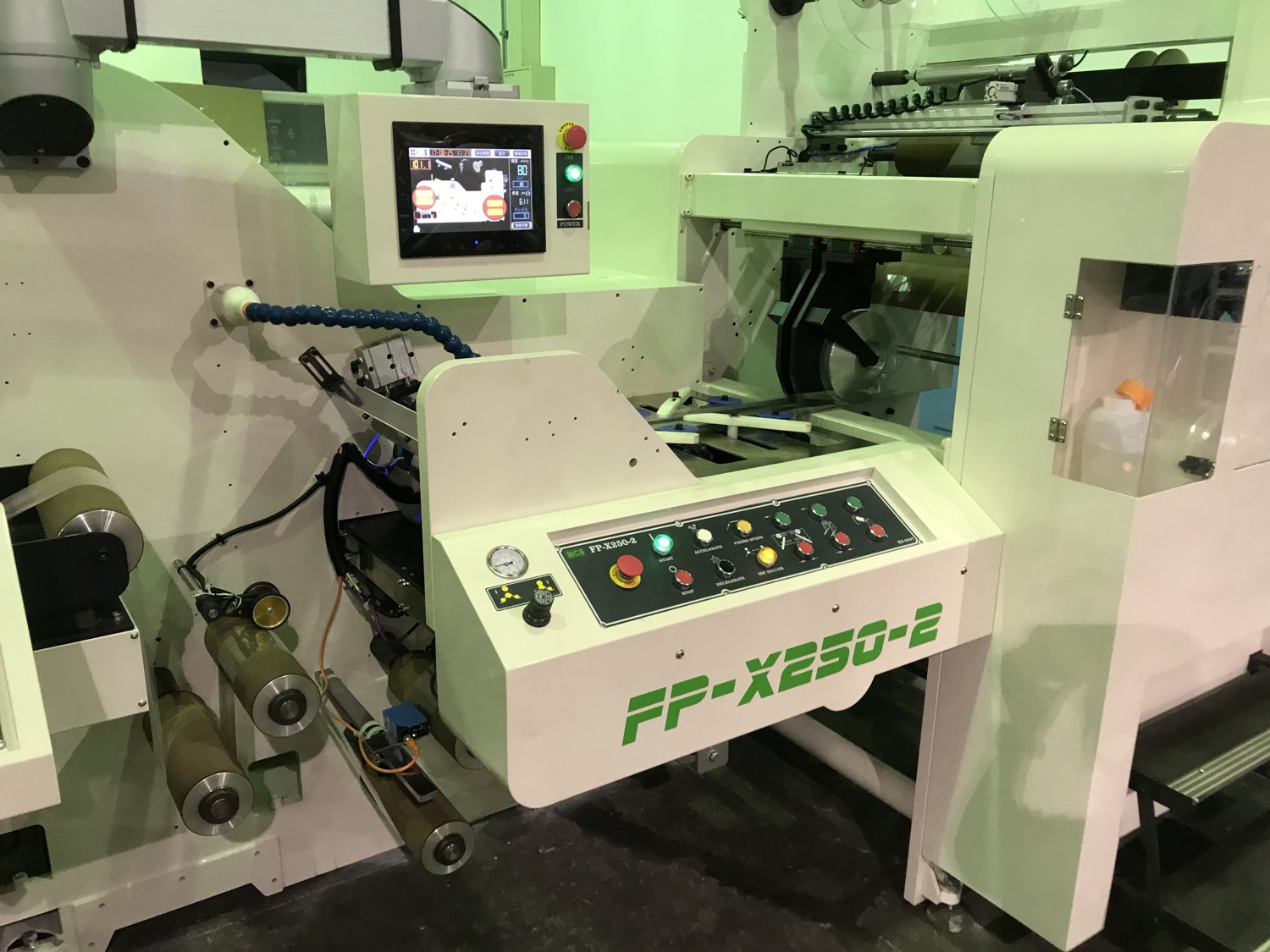

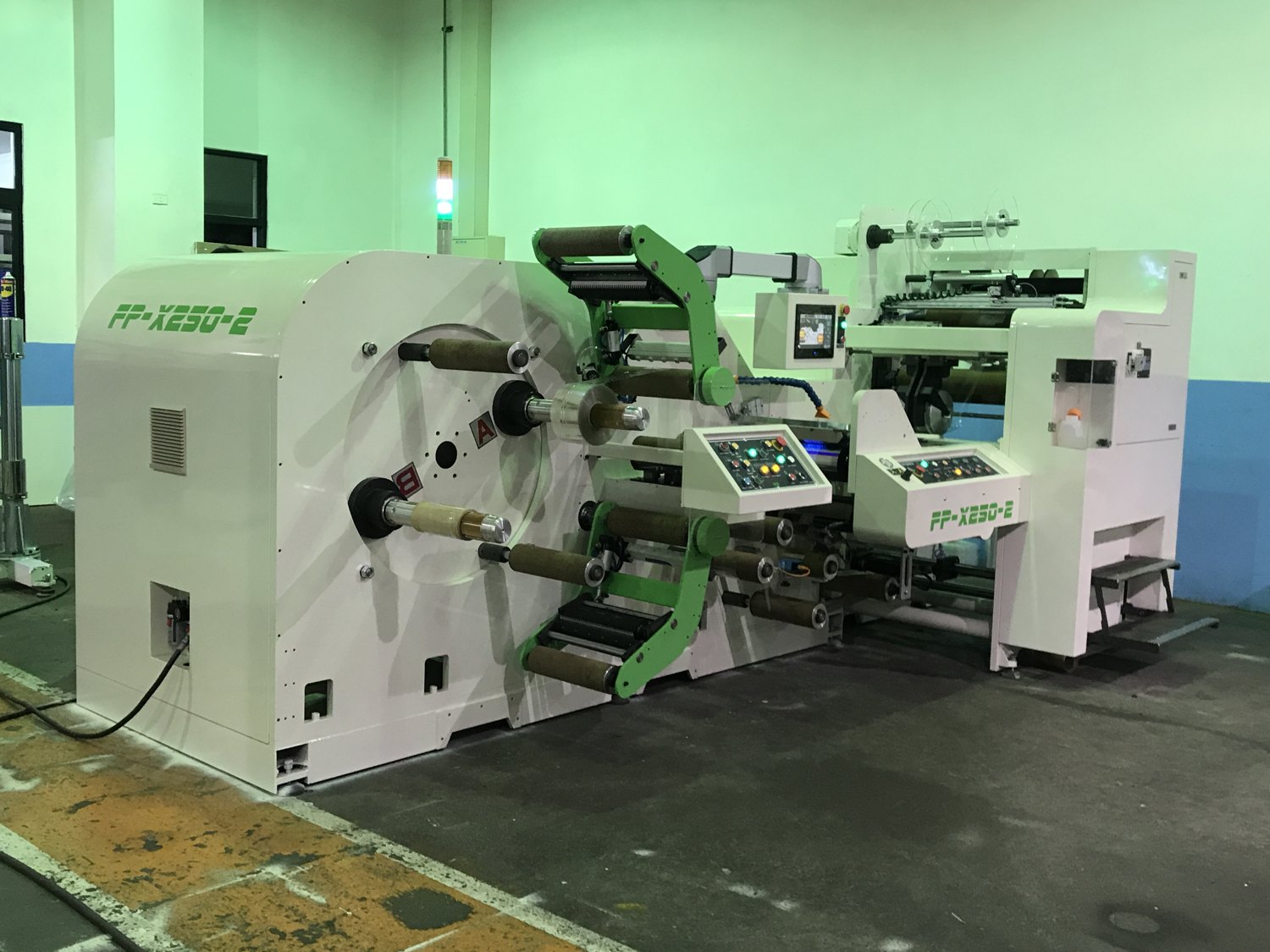

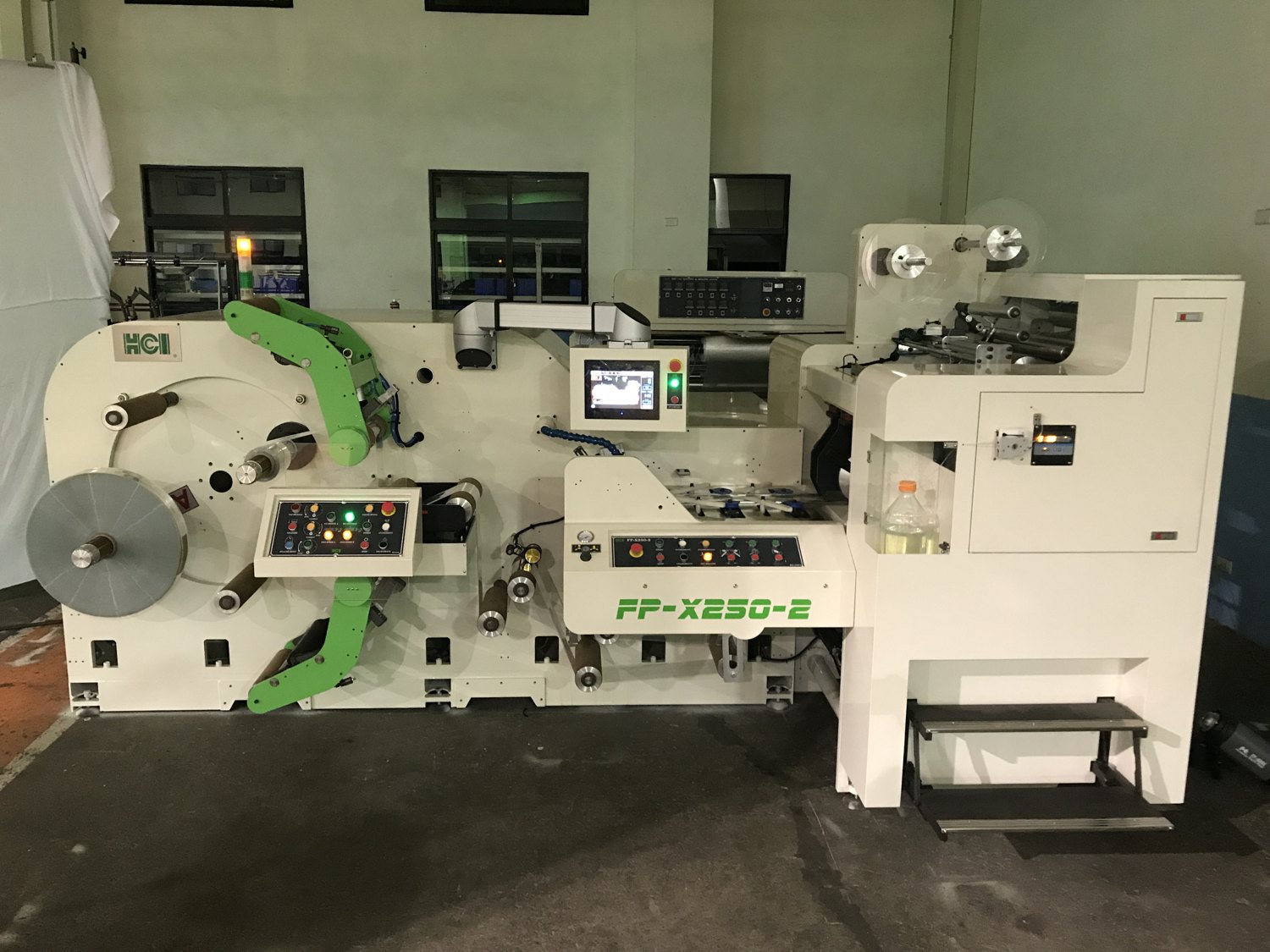

FP-X250-2 Gallery
FP-X250-2 machine and process visuals
Technical Features
The machine’s working principle and core technical features
Unwind and Tension Control
With a horizontal unwind, load cell and dancer roller, the unwind tension is automatically controlled; auto-splice fluctuations are eliminated and the web is fed stably.
Solvent Seaming Process
Needle-type solvent application system; the peristaltic pump adjusts the solvent volume according to the running speed. The sleeve is formed and seamed with solvent.
Turret Rewind and Automatic Roll Change
Dual air-shaft turret rewinder; rotates and splices automatically once the preset length or diameter is reached. Production continues without stopping the machine, increasing efficiency.
Layflat / Sleeve Width Control
The sleeve layflat width is controlled with a fully automatic forming unit and adjustable forming table; optional ultrasonic width detection can be added.
Online Control and Solvent Detection
Solvent detection and width inspection for seaming quality; warning or automatic stop is triggered when out of tolerance.
Line Control via HMI / PLC
Automatic unwind/rewind tension control, turret management and meter counter via a 10 inch color LCD HMI; the line is managed from a single panel.
Technical Specification
FP-X250-2 technical values
Standard Equipment
FP-X250-2 standard configuration (XLS Standard Accessories)
Standard Components with Visuals
Horizontal Unwind Stand
Horizontal unwind stand for roll loading and film guiding.
Turret Rewinder System
Dual rewind air-shaft turret; automatic rotation and splicing.

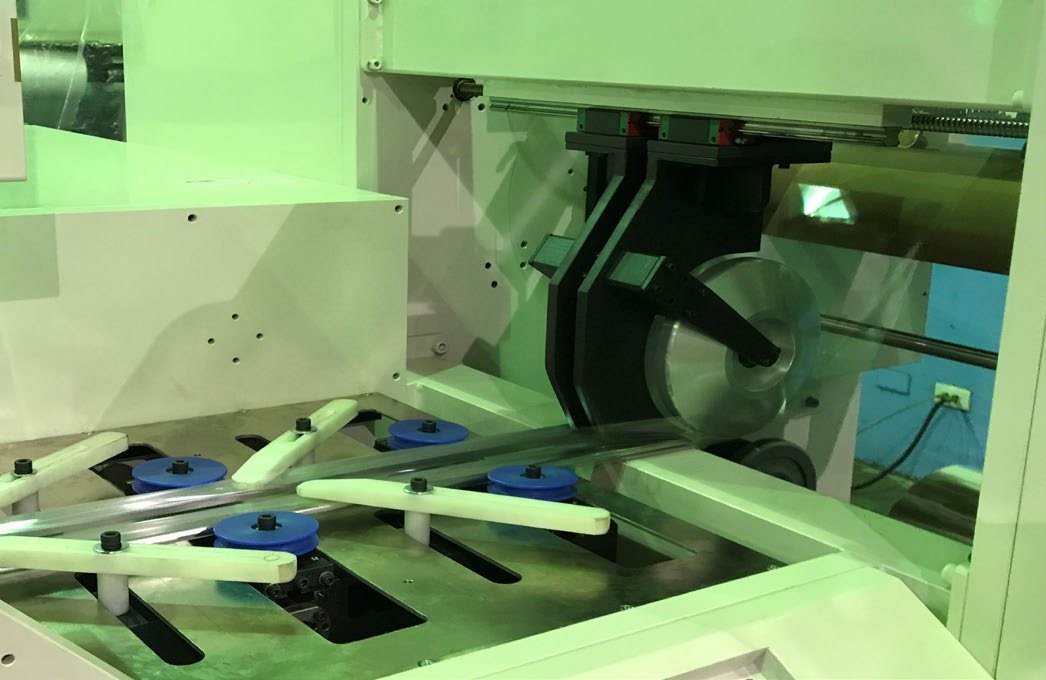

Sleeve Width Adjustment Unit
Sleeve width adjustment at forming; fast changeover to different widths.

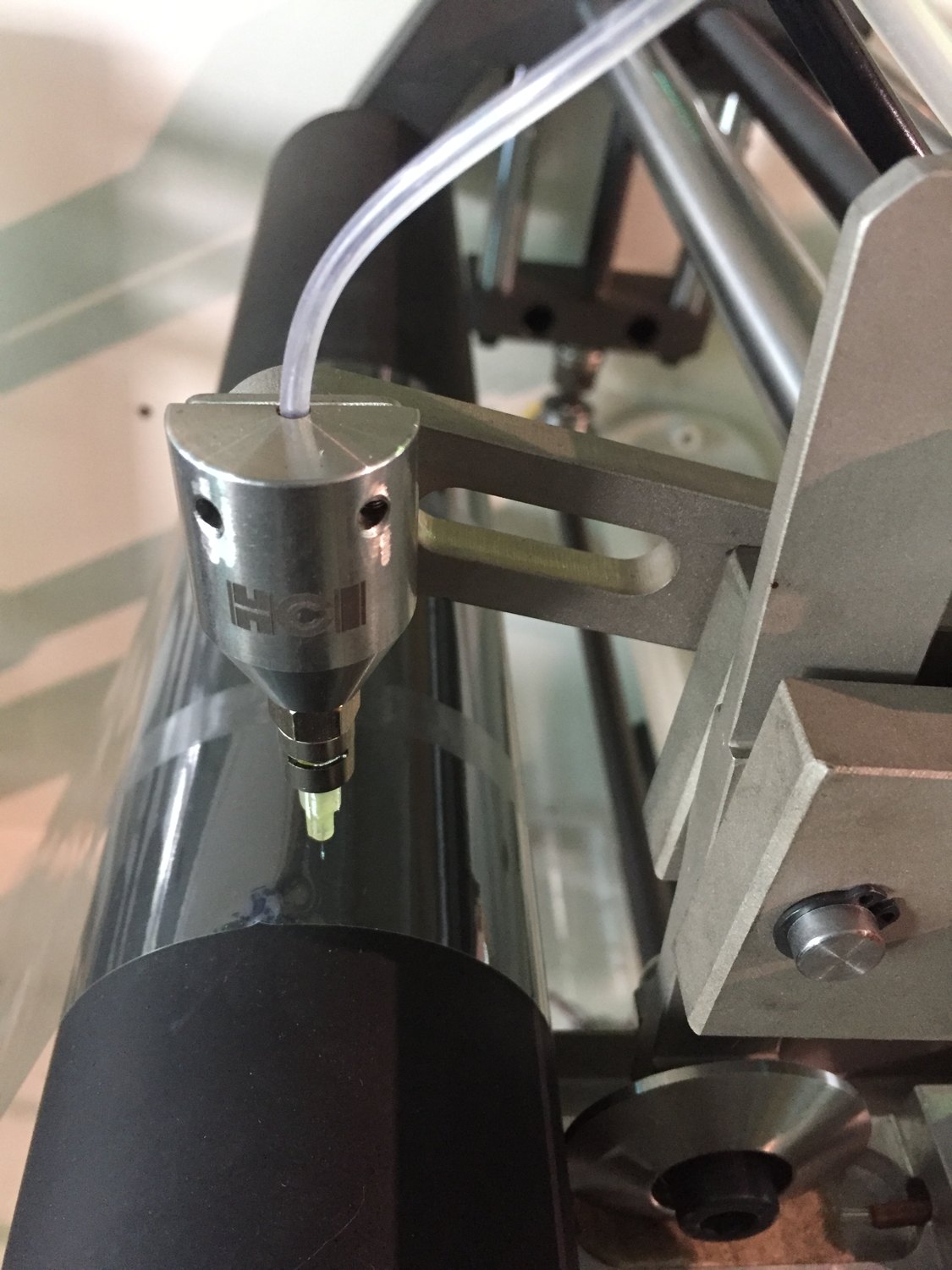

Needle-Type Solvent Application System
Peristaltic-pump needle-type solvent application; speed-synchronized, stable solvent volume.
Peristaltic Pump
Single-channel peristaltic pump; precisely controls the solvent feed.
Stainless Dispensing Needle Set
Stainless steel dispensing needle set for solvent application.
Metal Needle Dispenser
Metal needle dispenser for solvent dispensing.

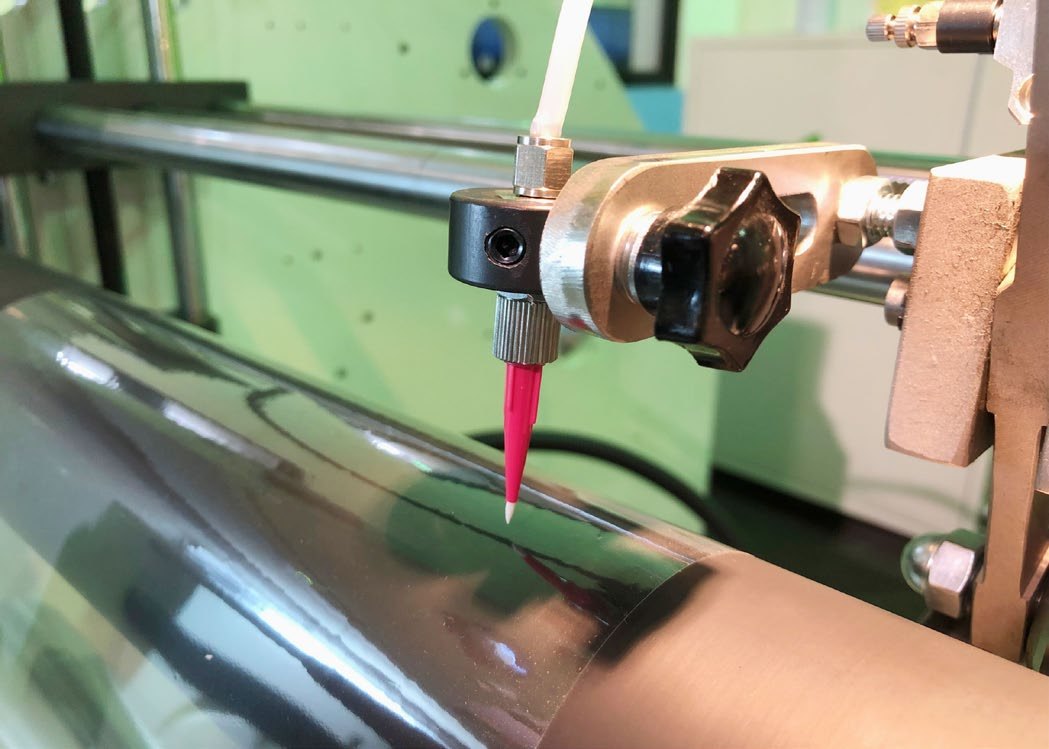

Wick Pen Dispenser
Wick pen dispenser interchangeable with the needle dispenser.
PLC & HMI Control System
10″ color LCD touchscreen; tension, turret and counter control.
Other Standard Equipment
3″ Unwind / Rewind Air Shafts
Roll clamping with 3 inch air shafts at unwind and rewind.
EPC Web Guide (E+L, Germany)
German-made E+L EPC edge web guide; the film is aligned automatically.
Unwind Tension Automatic Control
Automatic unwind tension control with load cell/dancer.
Rewind Tension Automatic Control
Automatic tension control on the rewind side; balanced roll rewinding.
AC Siemens Vector Motor + Yaskawa G7
AC Siemens vector motor with cooling fan/encoder + Yaskawa G7 inverter + regenerative resistor + line filter.
Rewind Oscillation Unit
Even roll rewinding with right/left 15 mm oscillation.
Static Eliminator
Eliminates static electricity on the forming/seaming line.
Drying Blower ¼HP + Lamp
¼HP blower and lighting lamp for solvent drying.
Main Drive + Operating Tools
AC Siemens vector main drive; operating tools and operation manual.
Modular Options
Configured according to your line requirements
Ultrasonic In-Line Sleeve Width Measurement
35–250 mm measurement; 2 ultrasonic sensors + alarm/stop on out-of-tolerance width.
In-Line Phosphor Detection System
Seaming continuity is monitored with phosphor mixed into the seaming solvent + photocell + UV inspection lamp.
Hot Melt Glue Coating Unit
Hot melt glue coating unit for non-solvent seaming processes.

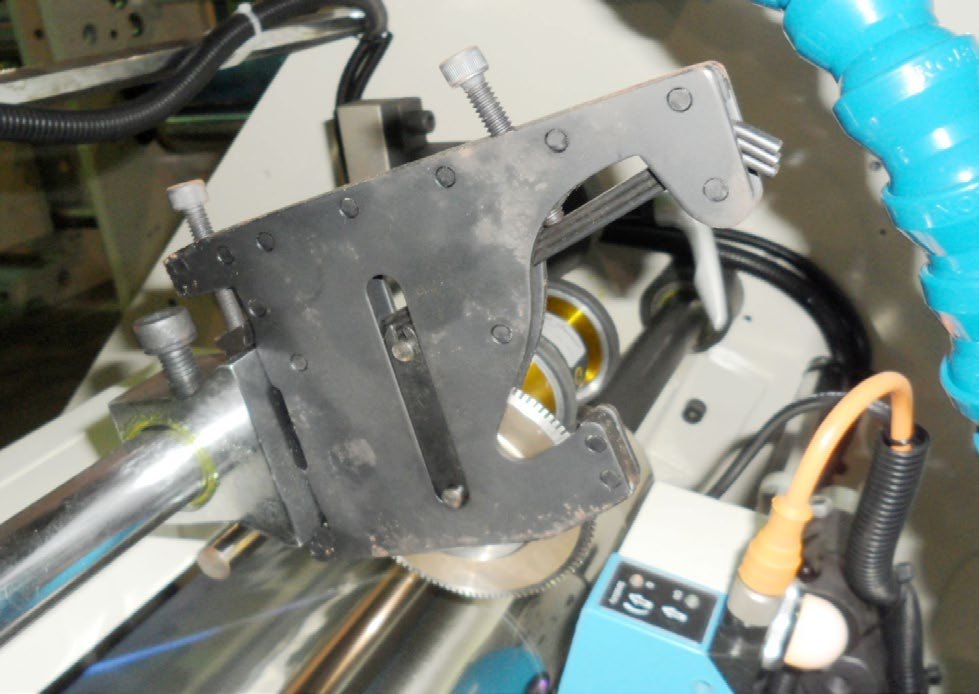

Vertical Continuous Perforation (Post-Sleeve)
70° hard roller + shelf & connection + 1 mm pitch blade; post-sleeve vertical continuous perforation.

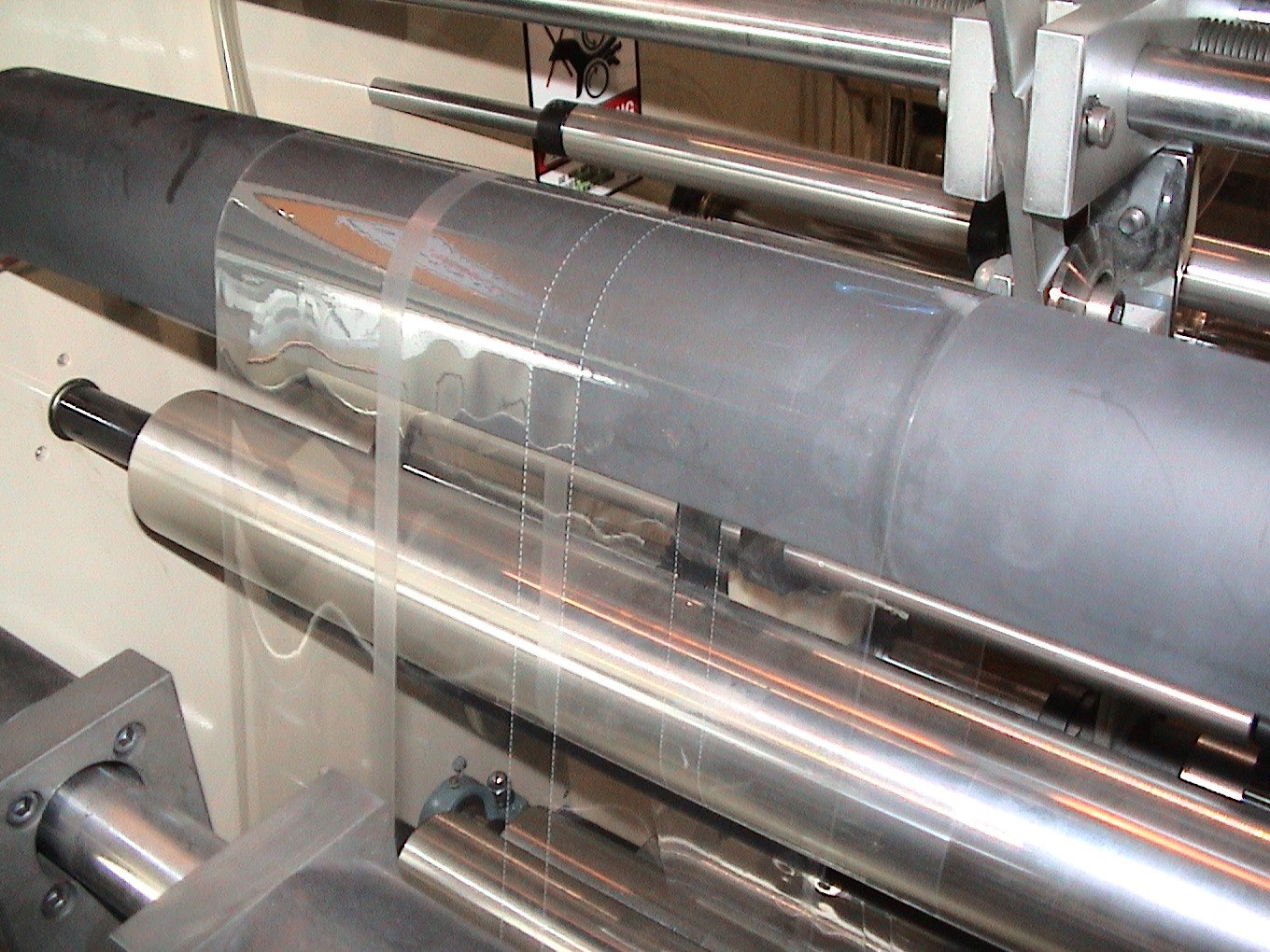

Dual-Lane Vertical Perforation (Pre-Forming)
Dual-lane vertical continuous perforation before forming (pitch 13 mm and above).
Solvent / Glue Flow Detection System
Clamp-on flow sensor that monitors micro-flow from outside the pipe; checks solvent flow without pressure loss/contamination.
Self-Adhesive Tape Taping
Self-adhesive tape taping with tape core inner diameter 3″ + tape outer diameter 300 mm + carrier liner rewinder.
Other Sleeve Models
Other HCI models that complete your shrink sleeve line
FSC-201 / 301 / 501Shrink Label CuttingServo high-speed PVC shrink sleeve label cutting series.
FP-250Glue SeamingShrink sleeve seaming machine with solvent/glue seaming.
FSP-250-2Sleeve Rewinding & InspectionBidirectional sleeve rewinding and inspection machine.Sleeve-EyeWidth MeasurementShrink sleeve width measurement/inspection system.Complementary Machines
HCI solutions that complete the sleeve production line
Türkiye Distributor
HCI Converting Equipment Türkiye sales point.
Installation & Commissioning
On-site installation, alignment and initial parameter calibration.
Operator Training
Operator and maintenance staff training after commissioning.
Spare Parts & Technical Support
Long-term spare parts supply and remote / on-site service.
BROCHURE & TECHNICAL INFORMATION
FP-X250-2 Detailed Technical Information and Project Evaluation
Get in touch with us for your turret rewind shrink sleeve seaming line configuration.
FP-X250-2 is a product of HCI Converting Equipment Co., Ltd. GMG Technic Makina San. ve Tic. Ltd. Şti., as the Türkiye distributor of HCI Converting Equipment, carries out the sales, installation, commissioning, operator training, spare parts supply and technical service processes.
