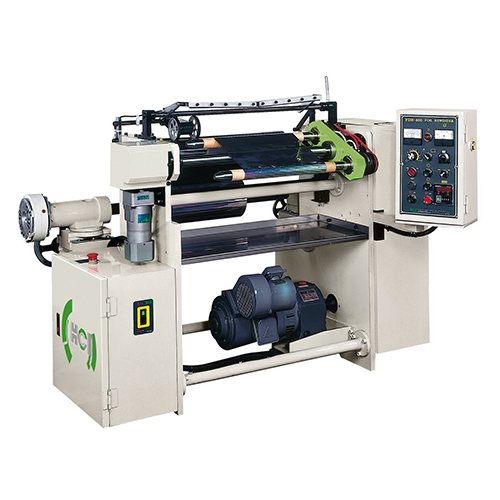

FDE Aluminum Foil Rewinding Machine
HCI CONVERTING EQUIPMENT · ALUMINUM FOIL REWINDING
The FDE-600 is a foil rewinding machine designed to rewind and split large aluminum foil rolls into smaller rolls. With its simple structure, oscillating unwind stand and automatic rewind shaft change mechanism, it enables uninterrupted production with a single operator. As the Türkiye distributor, GMG Technic handles sales, installation, commissioning and technical support processes.
FOIL REWINDING
Large → small roll
SINGLE OPERATOR
Oscillating unwind
UNINTERRUPTED
Automatic shaft change
Let’s plan the FDE-600 configuration together for your aluminum foil rewinding line.
Production Advantages
- Foil Rewinding & Splitting — Splits and rewinds large aluminum foil rolls into smaller rolls.
- Single-Operator Loading — An oscillating unwind stand + 3" air shaft means a single operator is sufficient.
- Automatic Shaft Change — Uninterrupted production with the automatic rewind shaft change mechanism.
- Magnetic Powder Brake Tension — Precise foil tension with a magnetic powder brake on the unwind and a powder clutch on the rewind.
- Length-Counter Auto Stop — Automatic stop when the set length is reached, controlled by the meter counter.
Application Areas
- Aluminum foil roll rewinding
- Producing small rolls from large foil rolls
- Technical / industrial foil splitting
- Foil roll distribution and standardization
What is FDE?
Aluminum foil rewinding machine
FDE is a dedicated rewinding machine that winds thin and delicate materials such as aluminum foil neatly and tightly.
With precise tension control, a lay-on roller and edge guiding, it winds the foil without wrinkling or cracking.
PLC control and automatic tension management ensure high-quality, stable foil winding.
Gallery
FDE — source gallery images
Technical Features
FDE working principle and key technical features
Foil Rewinding
Splits large aluminum foil rolls into smaller rolls and rewinds them.
Oscillating Unwind Stand
Oscillating-type unwind stand + 3" air shaft; the master roll is easily loaded by a single operator.
Automatic Shaft Change
Uninterrupted production with the automatic rewind shaft change mechanism.
Magnetic Powder Tension Control
Precise foil tension with a magnetic powder brake on the unwind and a magnetic powder clutch on the rewind.
Simple, Low-Maintenance Structure
Simplified mechanical structure; easy maintenance and long service life.
Oscillating Unwind Stand
Easy master roll loading with an oscillating-type unwind stand + 3" air shaft.
Automatic Rewind Shaft Change
Uninterrupted production with the automatic shaft change mechanism.
Flexible Core Diameter
Suitable for cores of different diameters (1" – 2" rewinding).
Meter-Counter Automatic Stop
A meter counter that stops the machine automatically when the set length is reached.
Magnetic Powder Brake / Clutch Tension
Tension control with a magnetic powder brake on the unwind and a magnetic powder clutch on the rewind.
Technical Specification
Aluminum foil rewinding machine
Standard Equipment
Units supplied in the standard FDE configuration (FDE-600.xls STANDARD ACCESSORIES — 10 items)

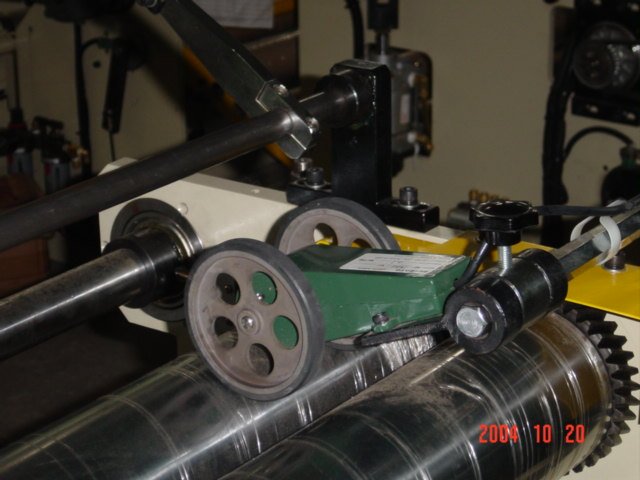

Automatic Counter (0.01 m)
Automatic counter that measures the wound foil length to 0.01 m accuracy.
Rewind Shaft (1.5″)
Standard 1.5 inch rewind shaft (2 sets); for thin foil reels.
Re-Production Pedal Switch
Operator-controlled re-production pedal switch.
Main Drive AC 1HP
1 HP AC main drive motor.
Powder Brake 2.5kg/m (Unwind Tension)
2.5 kg/m powder brake tension control on the unwind side.
Unwind Air Shaft 3″ × 600
3 inch diameter, 600 mm unwind air shaft.
Rewind Shaft Automatic Rotation Motor
Motor that rotates the rewind shaft automatically.
Rewind Shaft Automatic Change & Foil Cutting Clutch
Rewind shaft automatic change and foil cutting clutch (2 sets).
Two-Section Stop Unit
Two-section automatic stop unit.
Tool Kit / Operation Manual
Operating tool kit and operation manual supplied with the machine.
FDE-600 Aluminum Foil Rewinding Machine
HCI Converting Equipment official promotional video.
Türkiye Distributor
HCI Converting Equipment Türkiye point of sale.
Installation & Commissioning
On-site installation, alignment and initial parameter calibration.
Operator Training
Operator and maintenance personnel training after commissioning.
Spare Parts & Technical Support
Long-term spare parts supply and remote / on-site service.
BROCHURE & TECHNICAL INFO
FDE-600 Detailed Technical Information and Project Assessment
Contact us for your inspection and reversible rewinding line configuration.
The FDE-600 is a product of HCI Converting Equipment Co., Ltd. (). GMG Technic Makina San. ve Tic. Ltd. Şti., as the Türkiye distributor of HCI Converting Equipment, carries out sales, installation, commissioning, operator training, spare parts supply and technical service processes.
