FSE-2 Reversible Rewinding and Roll Inspection Machine
HCI CONVERTING EQUIPMENT · REWINDING & INSPECTION
The FSE-2 (model FSE-1300-2) is HCI Converting Equipment's reversible rewinding and roll inspection platform. It is designed for surface quality control of flexible packaging, electronic, TFT-LCD and optical material rolls, defect detection of printed film and laminate, and reversible rewinding. It converts a small roll into a large roll (or vice versa) and rewinds slit rolls with uneven edges or tension. As the Türkiye distributor, GMG Technic provides sales, installation, commissioning and technical support processes.
REVERSIBLE
Forward-reverse rewinding
ROLL INSPECTION
Fluorescent + inspection table
8" PLC/HMI
50 recipe memory
Let us plan the FSE-2 configuration together for your inspection and reversible rewinding line.
Production Advantages
- Inspection + Rewinding on a Single Platform — Roll surface inspection and reversible rewinding are combined on the same line.
- 320 – 1,300 mm Working Width — Flexible working range for a wide variety of films and laminates.
- Load Cell Servo Tension — A stable, even roll profile with precise automatic tension control.
- 8" PLC/HMI + 50 Recipes — Recipe-based fast setup; low operator training threshold and error margin.
- Optional Slitting + Trim Extraction — Process flexibility with edge slitting and vacuum trim extraction.
Application Areas
- Flexible packaging rolls
- Printed films and laminates
- Electronics / TFT-LCD / optical materials
- Defective print and surface inspection
- Small roll ↔ large roll transfer
- Rewinding of slit rolls with edge/tension problems
What is FSE-2?
Reversible rewinding and roll inspection machine (flagship)

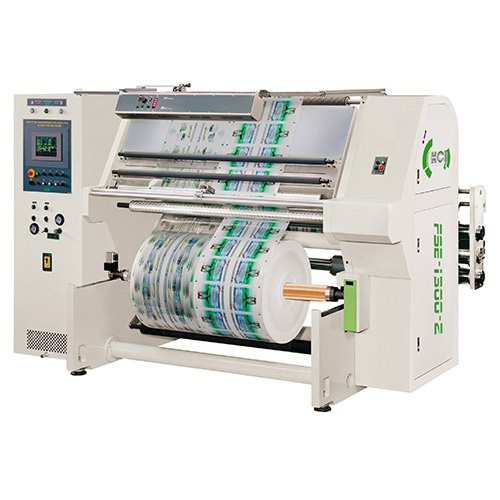

The FSE-2 is the series flagship re-reeling and roll inspection machine that rewinds rolls reversibly and inspects them in line.
With PLC & HMI control, EPC edge guiding, a splicing table and flash light inspection units, it delivers high-precision rewinding and quality inspection.
With modular options such as servo drive, LPC web guide and vacuum edge trim extraction, it meets the most demanding production needs.
Gallery
FSE2 — source gallery images
Technical Features
FSE-2 operating principle and key technical features
Reversible Rewinding
Forward and reverse rewinding; roll direction is changed at any moment via forward-reverse adjustment.
Roll Surface Inspection
Surface defect inspection of printed film/laminate with an inspection table and fluorescent light; automatic rewinding with length memory.
Load Cell Servo Tension
Unwind/rewind servo motor + drive; the tension measured by the load cell is automatically balanced, maintaining a stable rewinding profile.
8\" Touch PLC Control
8" color LCD touch panel; 50 recipe memory, film length control, automatic stop on material break and at length.
Motor-Adjusted Unwind Arms
The right and left unwind arms are motor-driven; the operator freely adjusts the working width.
Shaftless Pneumatic Chuck Unwind Stand
Floating type, shaftless structure + pneumatic chuck; the main roll is loaded quickly and easily with a 3" quick lock chuck.
Load Cell Tension Control
The load cell on the unwind side measures the tension; it is automatically increased/decreased according to the set value, providing constant tension.
EPC Edge Guiding
EPC (edge position control) provides the most even rewinding edge.
Reversible Rewinding Unit
The rewinding direction can be changed at any time via the forward-reverse adjustment function.
Servo Drive System
Rewinding servo 7.5 HP + unwind servo 5 HP, each with a drive; precise and stable motion control.
8\" Touch PLC Control System
50 recipe memory, automatic unwind/rewind tension control, film length control, automatic stop on material break, length preset + cumulative counter.
Fluorescent Inspection Lamp
Visual quality control station with an inspection table + fluorescent lamp.
1000 mm Synchronous Flash Light
Synchronous stroboscope lighting for inspecting defects in printed film.
Film Splicing Table
Film splicing table with pneumatic press bar.
Static Eliminator
Neutralization of static electricity on the film surface.
Pneumatic + Aluminum Lay-On Roller (1300 mm)
Pneumatic lay-on roller and aluminum lay-on roller for an even rewinding profile.
Technical Specification
Reversible rewinding and roll inspection machine
FSE-2-1000 / 1300 / 1600 Series Variants
Same reversible rewinding + roll inspection platform; difference = web width
Standard Equipment
Units included in the standard FSE-2 configuration (FSE-1300-2.xls STANDARD ACCESSORIES — 13 items)

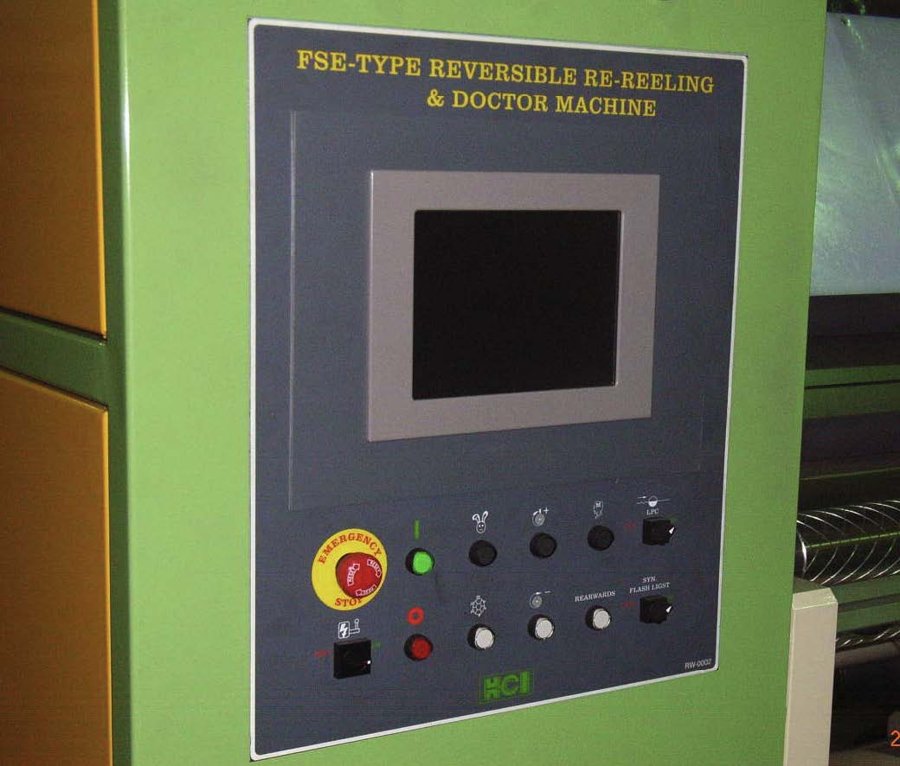

PLC Control System (8″ LCD)
8-inch LCD monitor, 50 pattern memory, unwind/rewind automatic tension, web volume control, material break stop, length preset and cumulative recording.
Splicing Table
A splicing table where material ends are aligned and joined during reel changes.

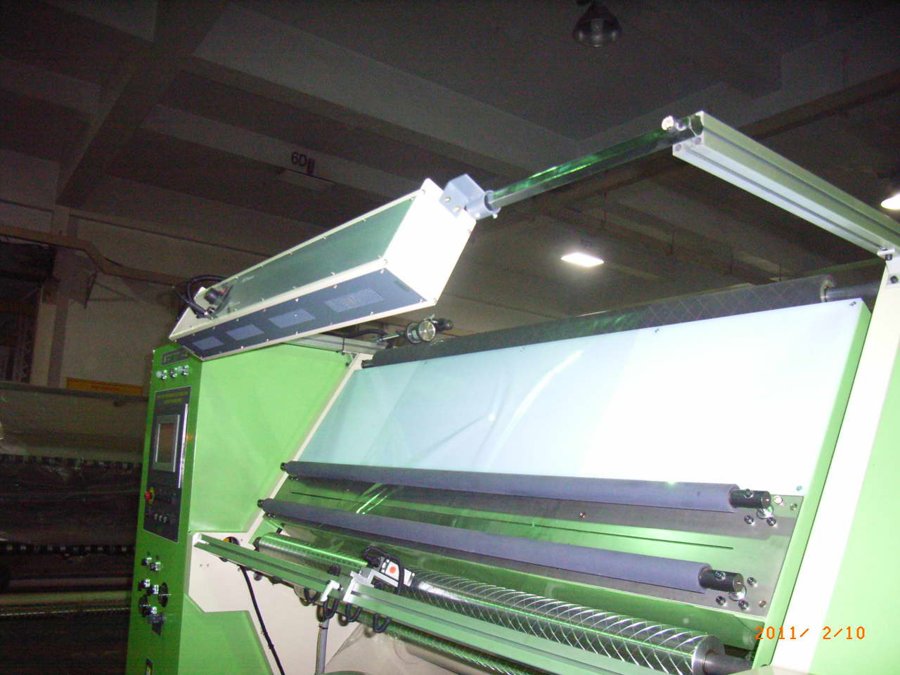

1000 mm Synchronized Flash Light
A 1000 mm synchronous flash light inspection unit that displays the web surface as stationary at high speed.
Rewind Drive Servo Motor 7.5HP + Inverter
Rewind drive with a 7.5 HP servo motor and inverter.
Unwind Servo Motor 5HP + Inverter
Unwind drive with a 5 HP servo motor and inverter.
Floating, Shaftless & Pneumatic Chuck Unwind Stand
3″ quick lock chuck and a load cell tension controller for unwinding.
EPC Edge Web Guide
An EPC edge guiding system that automatically tracks the web edge.
Reversible Unit
A reversible unit that can rewind in both directions.
Fluorescent Inspection Lamp
A fluorescent inspection lamp that illuminates the web surface.
Static Eliminator
An ionization unit that neutralizes static electricity during rewinding.
Rewind Aluminum Lay-On Roller 1300
A 1300 mm wide aluminum lay-on roller; even rewinding.
Rewind Stand (3″ × 1300 Air Shaft)
A rewind stand with a 3-inch diameter, 1300 mm air shaft.
Tool Kit / Operation Manual
The working tool set and operation manual supplied with the machine.
Modular Options
Configured according to your line needs
High Tension (up to 35 kg/m')
High tension capacity up to 35 kg/m' with a 10HP servo motor on the main drive and feed.
6″ Quick Lock Chuck (Unwind)
A 6-inch quick lock chuck for the unwind side.
LPC Web Guide (Instead of EPC)
An LPC web guiding system that tracks the print line and edge instead of the edge.
Edge Trim Cutting Unit
Razor blade holder, cutting system and vacuum (3HP) edge trim extraction unit.
FSE-1300-2 Reversible Rewinding and Inspection
FSE-1300-2 field video from the GMG Technic official YouTube channel.
Türkiye Distributor
HCI Converting Equipment Türkiye sales point.
Installation & Commissioning
Field installation, alignment and initial parameter calibration.
Operator Training
Operator and maintenance personnel training after commissioning.
Spare Parts & Technical Support
Long-term spare parts supply and remote / field service.
BROCHURE & TECHNICAL INFO
FSE-2 Detailed Technical Information and Project Evaluation
Contact us for your inspection and reversible rewinding line configuration.
The FSE-2 (FSE-1300-2) is a product of HCI Converting Equipment Co., Ltd. As the HCI Converting Equipment Türkiye distributor, GMG Technic Makina San. ve Tic. Ltd. Şti. manages sales, installation, commissioning, operator training, spare parts supply and technical service processes.
