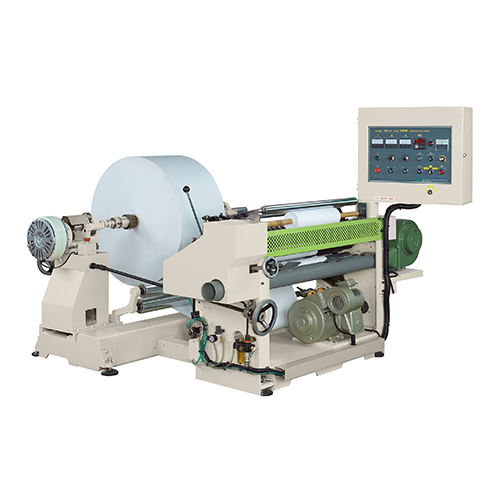

Small-Roll Slitter / Surface Winding Type Narrow Web Platform (FSL-D)
HCI CONVERTING EQUIPMENT · SMALL-ROLL SURFACE WINDING SLITTER REWINDER
FSL-DSmall-Roll SlitterSurface Winding Type Narrow-Web Platform
The HCI Converting Equipment FSL-D series is a surface-type slitter rewinder family designed for small-diameter (max. 150 mm) single-roll rewinding. It is optimized for productions that require fast batch changes on label, narrow protective film, double-sided tape and precision film materials. It operates in a 300–800 mm (FSL-D800) or 300–1,000 mm (FSL-D1000) web width range; the winding core inner diameter can be in different sizes on request, from 1/2 inch up to 3 inch. Thanks to the Roll End Warning Device + Pen Holder in the standard package, the end of the roll is signaled to the operator. The powder brake 5 kg/m unwind + powder clutch 5 kg/m rewind combination provides consistent tension. GMG Technic Makina San. ve Tic. Ltd. Şti., as the Türkiye distributor of HCI Converting Equipment, handles sales, installation and technical support.
SMALL ROLL
Max. 150 mm winding diameter · fast batch change
FLEXIBLE CORE
1/2" – 3" winding inner diameter (sample request)
ROLL END WARNING
Roll end pen holder warning system
Let’s plan the FSL-D configuration for your small-diameter roll line together.
Production Advantages
- A surface-type slitter optimized for small-diameter roll (max. 150 mm) winding; it enables fast batch changes on label, narrow protective film, double-sided tape and precision film materials.
- With a flexible winding core inner diameter (different sizes on request, from 1/2 inch up to 3 inch), it adapts to different end-product core sizes on the same machine.
- The Roll End Warning Device + Pen Holder is included in the standard package; on the unwind side the end of the roll is visually marked for the operator, preventing production stoppage.
- The powder brake 5 kg/m unwind + powder clutch 5 kg/m rewind combination provides consistent tension; the winding structure is preserved on thin and low-gauge materials.
- In the standard package, a Shear-Blade Cutting Unit (10 sets) + 6, 15, 20, 30, 40, 50, 100 mm aluminum spacers (6 pcs each size) allow slit widths to be set up flexibly.
- With the modular upgrade, a hydraulic lift-up/down unwind stand (1000 mm jumbo diameter), 1000 mm large-diameter stand, EPC edge control system and automatic unwind tension controller are added.
Applications
- Label stock small-diameter roll slitting
- Narrow protective film fast batch change
- Double-sided tape and adhesive film
- Screen protection and surface protection film small roll
- Kitchen film and hygienic film small roll
- Textile tape and adhesive narrow tape
- Pharmaceutical and cosmetic packaging small-diameter roll
- Promotional label small-batch production
FSL-D Gallery
FSL-D machine visual
Technical Features
FSL-D working principle and key technical features
Small-Diameter Roll (Signature)
It is optimized for small-roll rewinding with a max. 150 mm winding diameter. It is the ideal platform for productions that require fast batch changes on label, narrow protective film, double-sided tape and precision film materials.
Flexible Winding Core Inner Diameter
The winding core inner diameter is supplied in different sizes on request, from 1/2 inch up to 3 inch (a sample is requested from the customer for sizes other than 3 inch). It adapts to different end-product core sizes on the same machine.
Roll End Warning Device
On the unwind side, the end of the roll is visually marked for the operator. A painted mark is made at the roll end with the pen holder; production stoppage is prevented and the material remaining at shift end is clearly visible.
Modular Upgrade Packages
The standard 3HP main motor + powder brake 5 kg/m + 600 mm unwind diameter package is expanded with the modular upgrade to a 5HP motor, 10 kg/m powder brake, 1000 mm hydraulic lift-up/down stand or 1000 mm large-diameter stand options.
AC Motor 3HP Main Drive
The main drive AC motor 3HP is included in the standard package; a low power class suitable for small-diameter roll winding. A 5HP upgrade package is optionally available (together with 1000 mm large-diameter or hydraulic stand options).
Powder Brake 5 kg/m Unwind Tension
The unwind tension control powder brake 5 kg/m is included in the standard package; it provides consistent tension on thin and precision material. With the optional auto controller, load cell integration is done.
Air Shaft 3″ × 800 mm Unwind
The pneumatic 3 inch × 800 mm unwind air shaft is included in the standard package; it provides fast gripping and release.
Powder Clutch 5 kg/m Rewind Tension
On the rewind side, powder clutch 5 kg/m is included in the standard package; consistent tension control is done from the start to the end of the winding.
Flexible Rewind Shaft (On Request)
2 pcs rewind shaft are included in the standard package; the winding core inner diameter is supplied in different sizes on request, from 1/2 inch up to 3 inch. A sample is requested from the customer for sizes other than 3 inch.
Roll End Warning Device + Pen Holder
On the unwind side, the roll end warning device is included in the standard package; a painted mark is made at the roll end with the pen holder (10 pcs). The operator is visually warned of the roll end, preventing production stoppage.
Shear-Blade Cutting Unit × 10
In the standard package there is a Shear-Blade Cutting Unit Ø98 × 80 (10 sets) + 6, 15, 20, 30, 40, 50, 100 mm aluminum spacers (6 pcs each size). A clean edge is obtained with shear-type cutting.
Automatic Counting Unit
The meter counter is included in the standard package; production tracking is done without being delegated to the operator, and at shift end the number of slits is reported automatically.
1/2HP Edge Trim Exhaust Fan
The 1/2HP edge trim exhaust fan is included in the standard package; it provides suction power to transfer the edge trim material out of the line. It works integrated with the optional vacuum type edge trim exhaust system.
Surface Winding Type Small-Roll Mechanism
Surface winding is performed via the driven rubber roller; thanks to the mechanism optimized for small-diameter roll (max. 150 mm) winding, the winding tension is adjusted practically according to material characteristics. It works together with the standard 5 kg/m powder clutch rewind tension system.
Technical Specifications
Specification Table
FSL-D800 (reference variant) — FSL-D600 / FSL-D1000 in different widths
| Specification | FSL-D800 Small-Roll Surface Winding Slitter Rewinder |
|---|---|
| Mechanical Speed (m/min) | 0 – 150 |
| Unwind Unit | Air Shaft 3″ × 800 mm |
| Unwind Core Inner Diameter (mm) | 76 / 3" or 152 / 6" (Optional) |
| Web Width (mm) | 300 – 800 (D800) / 600 / 1000 variants |
| Max. Unwind Reel Diameter (mm) | 600 |
| Slit Width (mm) | 40 – 800 |
| Max. Winding Diameter (mm) | 150 (SMALL roll) |
| Winding Core Inner Diameter | 1/2" – 3" (sample request) |
| Rewind Shaft | 2 pcs (size on request) |
| Unwind Tension | Powder Brake 5 kg/m |
| Rewind Tension | Powder Clutch 5 kg/m |
| Cutting (Standard) | Shear-Blade Cutting Unit (Ø98 × 80, 10 sets) |
| Roll End Warning Device | Standard (Pen Holder × 10 pcs) |
| Main Drive | AC Motor 3HP |
| Counting | Meter Counter |
| Edge Trim Fan | 1/2HP Edge Trim Exhaust Fan |
| Color | Frame/Control: PANTONE 7527C white · Safety cover: bright green |
| Machine Dimensions (m) | 2.40 × 1.85 × 1.85 |
| Weight (kg) | NW 1,000 |
| Power | 220V 14A · 380V 8A · 415V 8A |
| Air Requirement | 6 – 9 kg/cm² |
FSL-D600 / 800 / 1000 Series Variants
Same small-roll slitting platform; difference = web width
Standard Equipment
Units that come in the FSL-D standard configuration

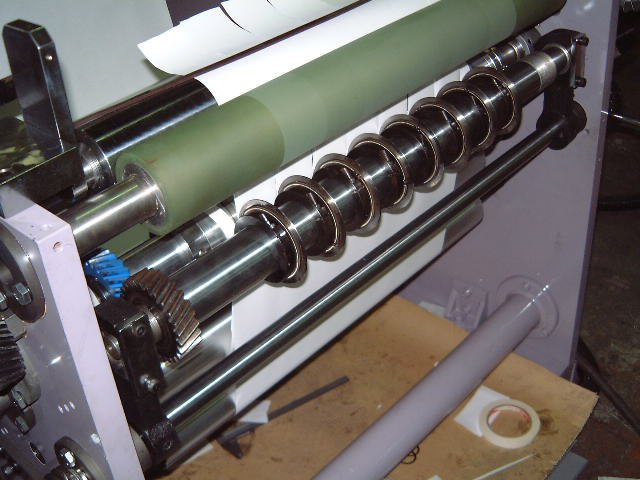

Shear-Blade Cutting Unit
Shear-blade cutting unit (φ98/80 mm, 10 sets).

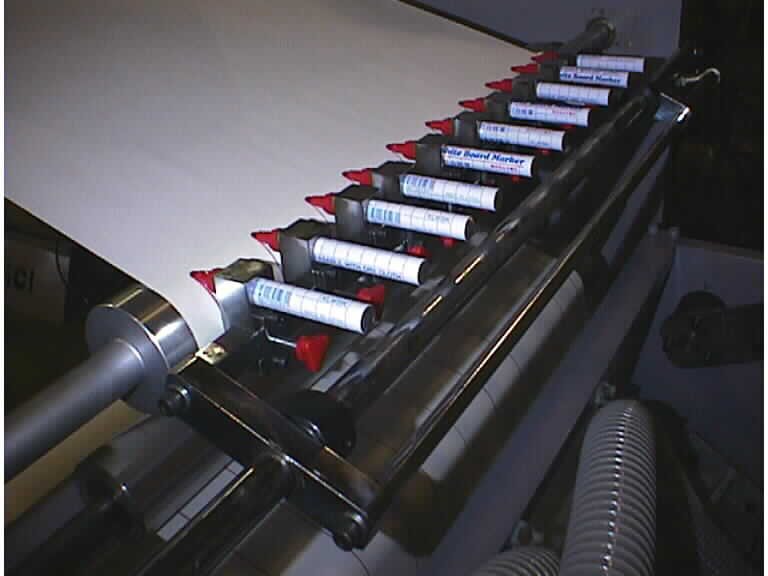

Roll End Warning Device
Warning device with pen holder that marks the roll end.

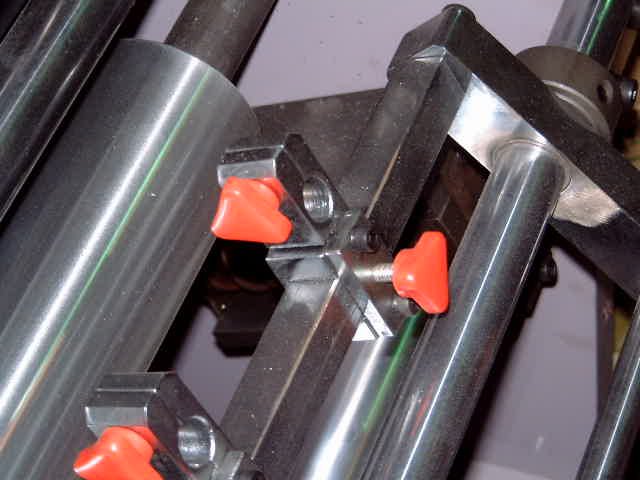

Pen Holder (Warning Device)
Pen holder for the roll end warning device.
Main Drive (AC 3HP)
Main drive AC 3HP motor.
Powder Brake + Powder Clutch (5 kg/m)
Unwind powder brake + rewind powder clutch 5 kg/m.
Unwind Air Shaft 3"
3" × 1000 mm unwind air shaft.
Rewind Metal Shaft
Rewind metal shaft (dimensions on request, 2 pcs).
Automatic Counter
Meter counter that stops the machine at a preset length.
Trim Reject Fan (1/2HP)
Edge trim exhaust fan.
Modular Options
Optional items that can be added according to project needs

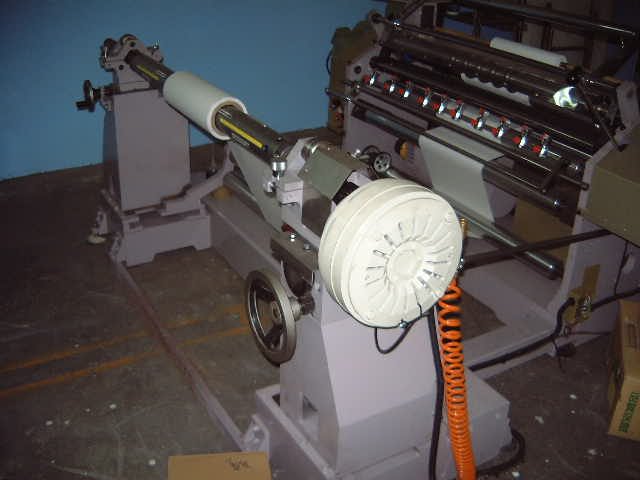

Ø1000 mm Unwind Stand
Large unwind stand for max. 1000 mm unwind reel diameter.

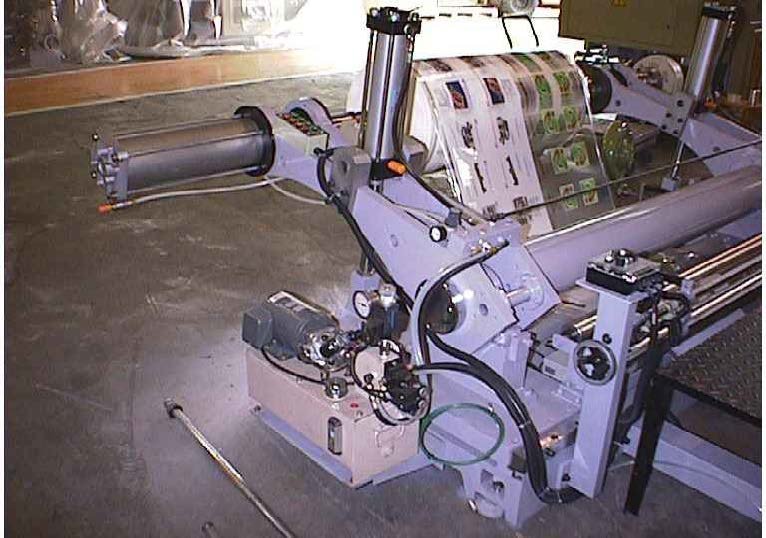

Hydraulic Up/Down Unwind Stand
Hydraulic lift-up/down unwind stand.

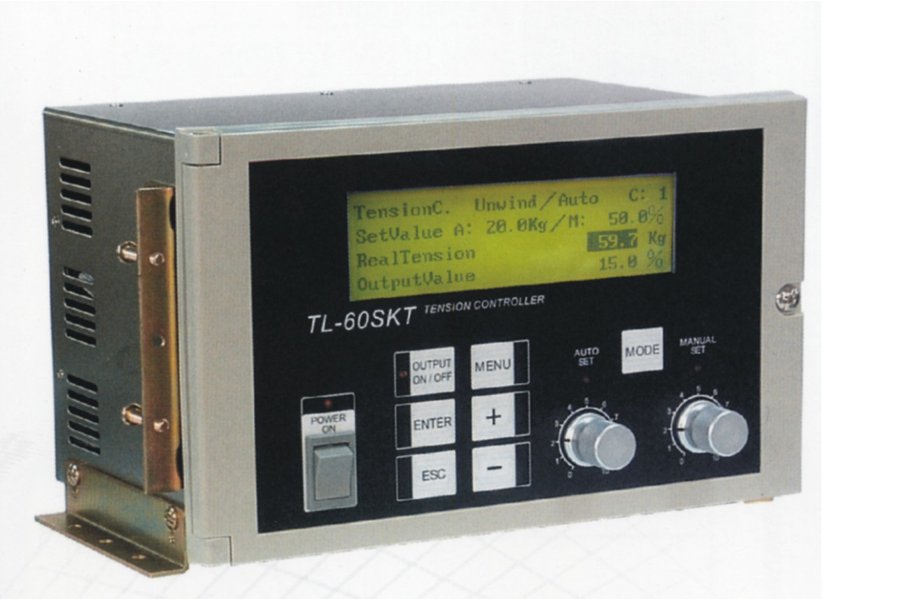

Unwind Tension Auto Controller
Automatic unwind tension control with a load cell sensor.

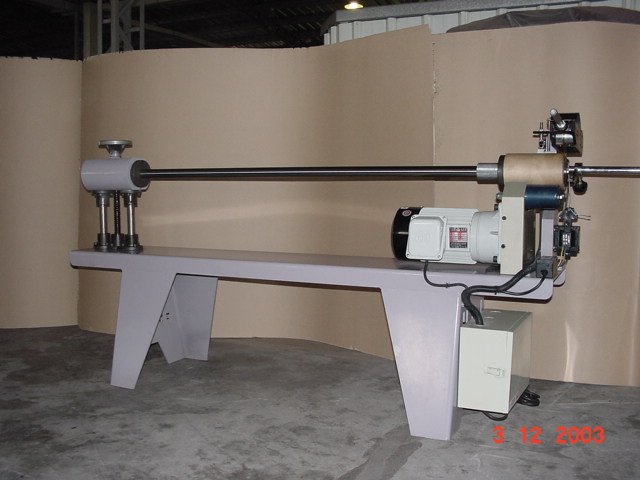

FPT-1300 Core Cutting
FPT-1300 unit for core cutting.
Main Drive 5HP Upgrade
AC 5HP main drive instead of the 3HP standard.
Powder Brake 10 kg/m Upgrade
10 kg/m powder brake instead of the 5 kg/m standard.
Shafted / Shaftless Unwind
Shafted or shaftless unwind configuration on request.
