FSC-303 / 503 / 603 Three-Step Sealing and Cutting Machine
HCI CONVERTING EQUIPMENT · THREE-STEP BOTTOM SEALING & CUTTING
Servo Three-Step Bottom Sealing & Cutting Machine

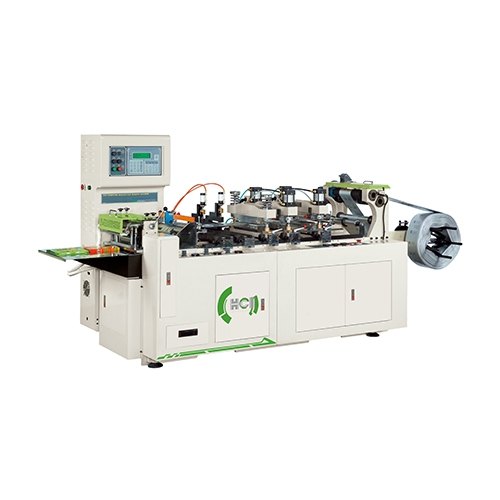

The HCI FSC-303 three-step bottom sealing and cutting machine delivers airtight, stable bottom seals on thick, hard-to-seal poly films thanks to three separate sealing stations (top+bottom heating, top heating, water cooling), 6 units of 500W heaters and 3 sets of automatic thermal controllers. It is suitable for producing side-sealed bags, gusseted and center-sealed bags, zigzag-cut bags and bags with punched holes/notches. It offers a 50–400 mm cutting length (1200 mm on request), 30–300 mm cutting width and a 30–130 pcs/min production range. As the Türkiye distributor of HCI Converting Equipment, GMG Technic provides sales, installation, commissioning and technical support.
Production Advantages
- Three-step bottom sealing station; a thicker-film capability and a more reliable, airtight closure profile compared to the single-step FSC-301 version.
- Water cooling unit + 3 sets of automatic thermal controllers + 6 units of 500W×320mm heaters; thermal stability in the sealing zone.
- Embossing plate automatic lifting unit; protects the material from overheating and breakage when the machine stops (Patent No. 42360).
- Five-claw coreless unwind (700 mm) + AC 2HP main drive + 850W servo pulling; stable feeding at high speed.
- Micro-computer control + automatic counter + cumulative record + skip seal (feeding up to 9 times).
Application Areas
- Production of three-step bottom-sealed bags from PE / PP / OPP film.
- Poly bag applications requiring thick film + reliable closure.
- Multi-layer film bags for food, cosmetics and agricultural packaging.
- Cutting on printed film with photocell position control.
- Bag types requiring zigzag cutting, hole and notch punching.
- Production in different closure patterns with skip seal.
FSC-303 / 503 Gallery
HCI Converting Equipment reference images
Technical Features
The main mechanisms that build the production logic
Unwind Section
The interchangeable unwind shaft is suitable for five-claw coreless and 3" paper cores. The AC-motor dancer roller unit ensures the most stable film feeding even at high speed.
Three-Step Bottom Sealing
Three-station closure: (1) top + bottom heating, (2) top heating, (3) water cooling — airtight closure. Designed especially for thick and hard-to-seal poly bags.
Automatic Lifting Unit
Bottom seal plate automatic lifting unit; prevents the material from overheating or breaking when the machine stops (Patent No. 42360).
PID Temperature Control
Microprocessor PID temperature controllers provide the most precise and fastest heating performance; constant temperature in the sealing zone.
Servo Cutting Section
The cutting length is precisely controlled by a servo motor working with a photocell sensor; it noticeably increases production speed.
Skip Seal
With the skip seal function, the bag length can reach up to 9 times the feeding length; different cutting patterns on a common parent roll.
6 Heaters + 3 Thermal Controllers
6 units of 500W×320mm bottom seal heaters + 3 sets of automatic thermal controllers; separate control for each sealing station.
Embossing Plate Set
8 / 10 / 12 mm bottom seal embossing plate set standard; selection option according to different film characteristics.
Micro-Computer Control
Automatic counter, cumulative record and automatic stop when the photocell is disabled; eases operator monitoring.
Technical Specification
FSC-303 Servo Three-Step Bottom Sealing & Cutting Machine
| Cutting Length (mm) | 50 – 400 (1200 on request) |
| Cutting Width (mm) | 30 – 300 |
| Max. Unwind Diameter (mm) | 700 (five-claw coreless) |
| Mechanical Speed (pcs/min) | 30 – 130 |
| Main Drive | AC 2 HP |
| Material Pulling Motor | Servo 850W |
| Material Feeding Motor | AC 1/4 HP |
| Bottom Seal Heater | 500W × 320 mm, 6 units |
| Embossing Plate Set | 8 / 10 / 12 mm |
| Water Cooling Unit | Standard |
| Embossing Plate Automatic Lifting | Standard |
| Thermal Controller | 3 sets automatic |
| Cutting Unit | Standard |
| Skip Seal | Standard (9× feeding) |
| Micro-Computer Control | Automatic counter + cumulative record + automatic stop on photocell disable |
| Power | 220 / 380 / 415 / 440V · 50/60 Hz · 3 phase |
| Machine Dimensions | 3.60 × 1.15 × 1.40 m |
| Net Weight | ~1000 kg |
FSC-303 / 503 / 603 Series Variants
The same three-step sealing + cutting platform; the only difference is cutting width
| Feature | FSC-303 | FSC-503 (wide) | FSC-603 (widest) |
|---|---|---|---|
| Cutting Width (mm) | 30–300 | 50–500 | 100–600 |
| Cutting Length (mm) | 50–400 | 50–400 | 50–400 |
| Max. Unwind Diameter (mm) | 700 | 700 | 700 |
| Mechanical Speed (pcs/min) | 30–130 | 30–130 | 30–130 |
Standard Equipment
Equipment that comes standard with the FSC-303

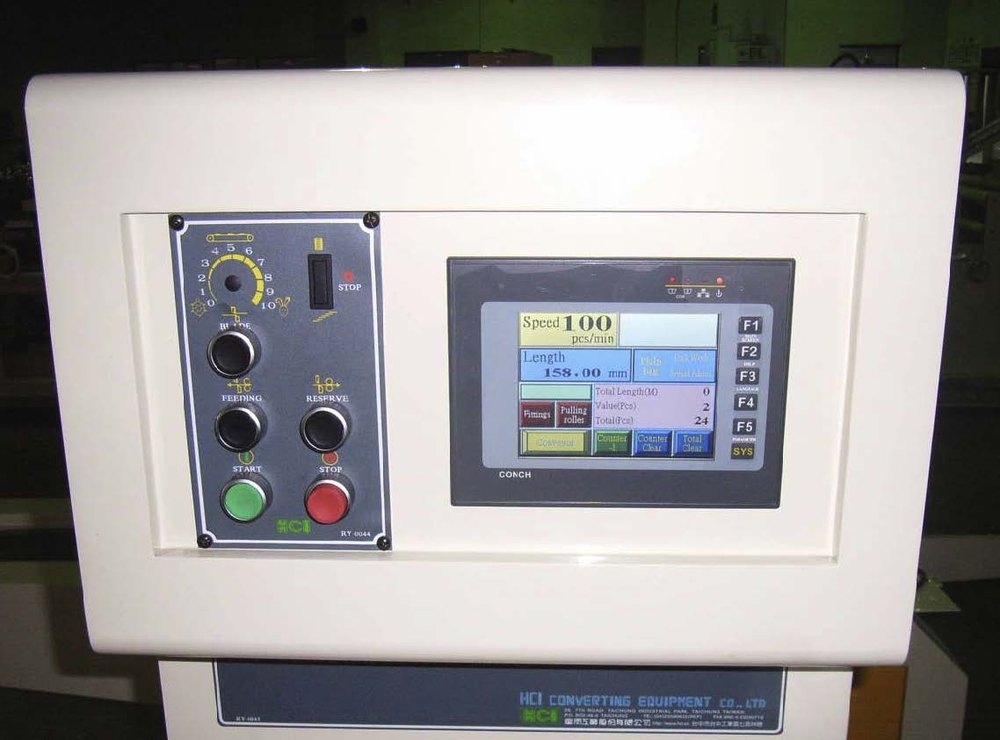

Micro-Computer Control System
Automatic counter + stop indicator + cumulative record + automatic stop on photocell disable + 9× skip seal.
Five-Claw Coreless Unwind
Five-claw coreless unwind; coreless parent roll, 700 mm max. diameter.
Main Drive AC 2HP
AC 2 HP main drive motor; constant speed coordinated with the three-step closure line.
Servo Material Pulling 850W
Automatic material pulling unit; precise film traction.
Automatic Material Feeding
AC 1/4 HP automatic material feeding unit.
Photocell
Cutting mark tracking and position control on printed film.
Automatic Thermal Controller (3 sets)
Separate automatic temperature controller for each sealing station.
Bottom Seal Embossing Plate
8 / 10 / 12 mm embossing plate set standard.
Bottom Seal Heater
500W × 320 mm heater, 6 units.
Water Cooling Unit
Water-cooled sealing zone in the third closure step.
Embossing Plate Automatic Lifting
Automatic coordination of the sealing plate movement.
Cutting Unit
Cutting unit standard for the PE/PP/PVC/PET film family.
Modular Options
Configured according to your line requirements
Pneumatic Puncher (Punching)
Hole punching with a Ø6 mm or rhombic 2×4 mm punching tool.
Hanging Slot — Butterfly
Butterfly slot (22×4.2×10.2 mm) pneumatic hanging slot puncher.
Hanging Slot — Mexica Line
Mexica line slot (22×4.2×7.2 mm) pneumatic hanging slot puncher.
Date and Code Printer
Printer unit for printing production date and code.
Unwind Center Folding
Center folding unit for material 100–500 mm / product 50–250 mm.
Independent Unwind Stand
Independent unwind stand for 3" paper core or five-claw coreless.
Germany SICK Photocell
Germany SICK photocell upgrade in place of the standard photocell.
Conveyor
AC 60W driven product conveyor; working area 1400×300 mm, adjustable speed.
Horizontal Unwind Stand (V-Table)
V-table horizontal unwind stand; alternative feeding direction.
Air Cooling (Chiller)
Additional air cooling unit for the sealing zone.
Zigzag Cutting Unit
Zigzag cutting unit with 3 mm × 200 mm cutting width.
Rewind Perforation Unit
Perforation (tear-off hole) unit on the rewind side.
Rewinder Unit (25 m/min)
Rewind diameter 300 mm, 3" core, automatic speed and tension adjustment.
Anti-Static Unit
Static electricity elimination unit; feeding stability on thin film.
Protective Guards
Additional protective guards for operator safety.
FSC-303 Video Gallery
Official promotional and field footage
Similar Sealing & Cutting / Sheeting Models
Cutting and sheeting variants within the FSC family
Complementary Machines
Slitting, rewinding, laminating and bag solutions that complete the sealing & cutting line
Türkiye Distributor
HCI Converting Equipment Türkiye point of sale.
Installation & Commissioning
On-site installation, alignment and initial parameter calibration.
Operator Training
Operator and maintenance personnel training after commissioning.
Spare Parts & Service
Long-term spare parts supply and remote / on-site service.
