FSL-TRTurret Rewind SlitterNon-Stop Winding and High Efficiency Platform
The FSL-TR1300 is a high-performance HCI solution targeting automatic winding transfer, a turret rewind structure and uninterrupted production flow on high-efficiency slitter rewinder lines. With automatic splicing, web cutting, paper core positioning, finished roll pusher and a turret-type roll discharge structure, it reduces operator load in production with frequent reel changes. With a 0–500 m/min mechanical speed, a 600 mm rewind diameter, an E+L Germany LPC web guiding system, a 15 inch color HMI and 99 recipe memory, the FSL-TR is, alongside the FSL-TX, one of GMG Technic’s flagship models in the Slitter category.
NON-STOP TURRET
Automatic shaft change · 4 rewind shafts
AUTOMATIC SPLICE
Servo-motor automatic splicing + flying knife
E+L GERMANY LPC
Standard German edge tracking system
Let us plan the FSL-TR configuration for your automatic turret slitting and winding line together.

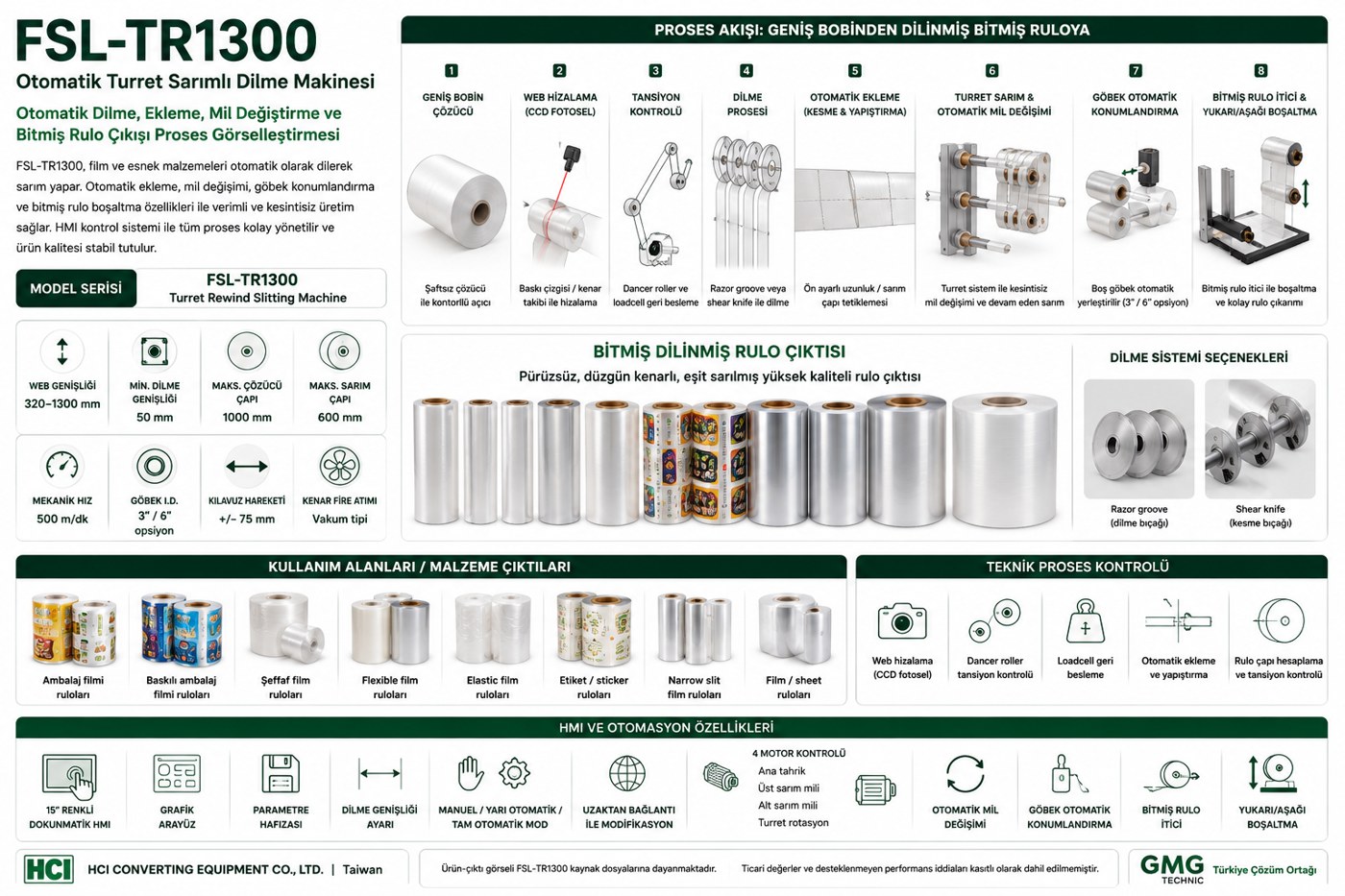

What Is the FSL-TR1300?
Automatic turret winding, automatic splicing and automatic cutting platform
The FSL-TR1300 is a turret rewind slitter-rewinder; it is designed for the automatic slitting and rewinding of film, foil, paper and flexible packaging materials. With its shaftless unwind, dancer-roller tension control and turret winding system, it provides uninterrupted and precise winding at high speed.
Key features
- ›Shaftless unwind stand
- ›Dancer-roller tension control
- ›Automatic cutting / splicing
- ›Turret winding system
- ›Finished product pusher
- ›Automatic core positioning
- ›Turret up/down discharge
- ›15" PLC-HMI control
Production Advantages
- With automatic splicing (servo-motor, 1300W + 400W) and automatic film cutting (flying-knife cutting unit), the line does not stop during roll change. Production efficiency is top-level.
- 4 rewind shafts + turret rotation mechanism (AC 1HP motor + magnetic clutch × 4) + 4 sets of ball-type differential winding shaft. Tension is automatically adjusted via the winding diameter calculation system.
- Shaftless unwind stand + unwind dancer-roller system (low-friction roller + linear potentiometer) + load cell feedback for stable unwind tension control across the entire speed range.
- 15 inch color LCD touchscreen HMI: graphical interface, remote connection mode, manual / semi-automatic / fully-automatic production mode selection, recipe memory 99 units.
- E+L Germany-made LPC web guider in the standard package. Print-line and edge dual-mode high-precision tracking.
- Operator intervention is reduced with Automatic Paper Core Positioning + Finished Roll Pusher (Servo 1800W).
Applications
- Flexible packaging film slitting (PE, PP, PET, BOPP, laminate)
- Pharmaceutical / medical packaging film (parafilm, tegaderm-type transparent film)
- Agricultural film and greenhouse film lines
- Food packaging protective film slitting
- Label stock and self-adhesive material slitting
- Shipping packaging film
- Industrial technical film and thin foil slitting
- Narrow web roll output from high-tonnage jumbo rolls
FSL-TR Gallery

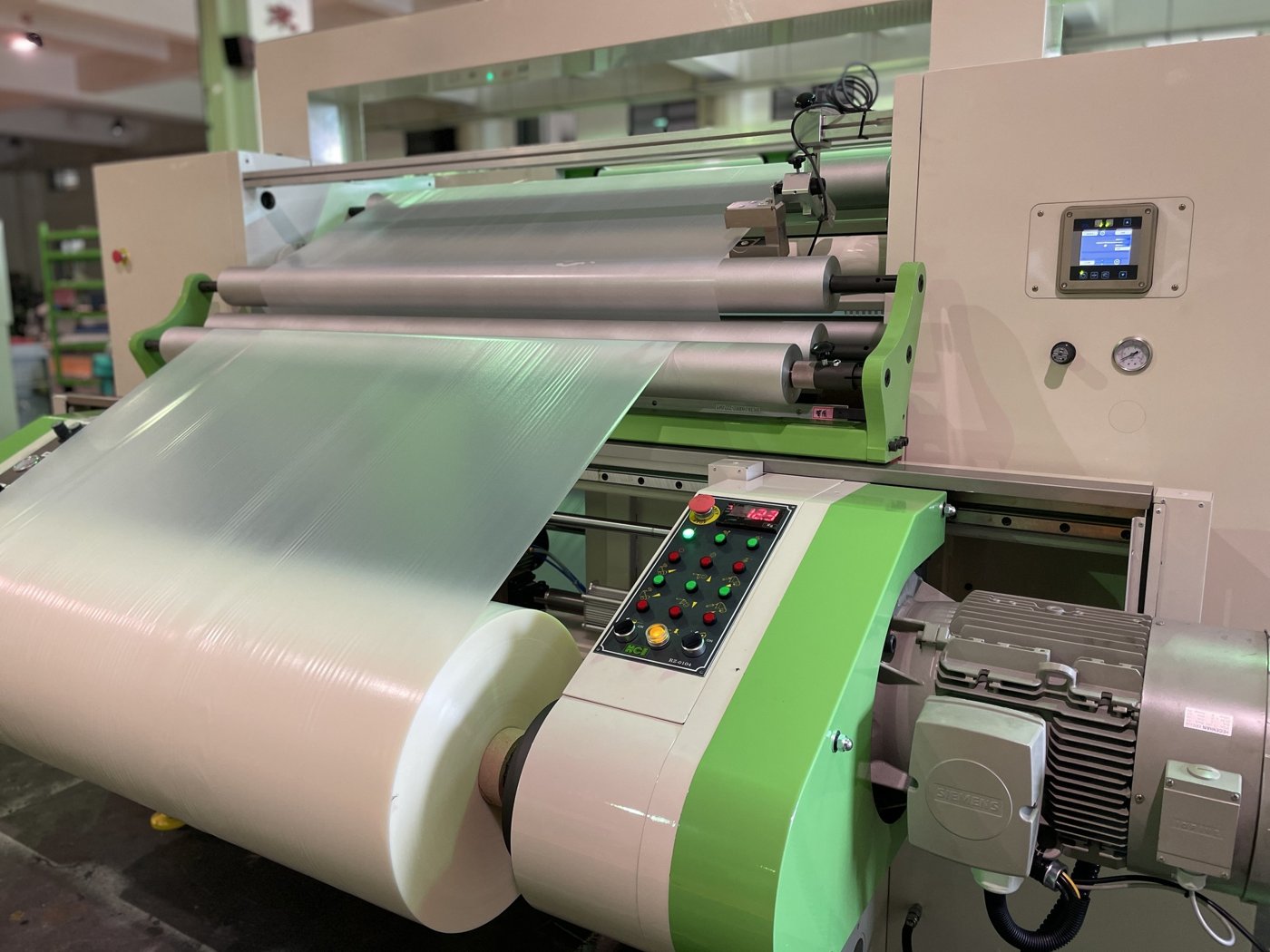

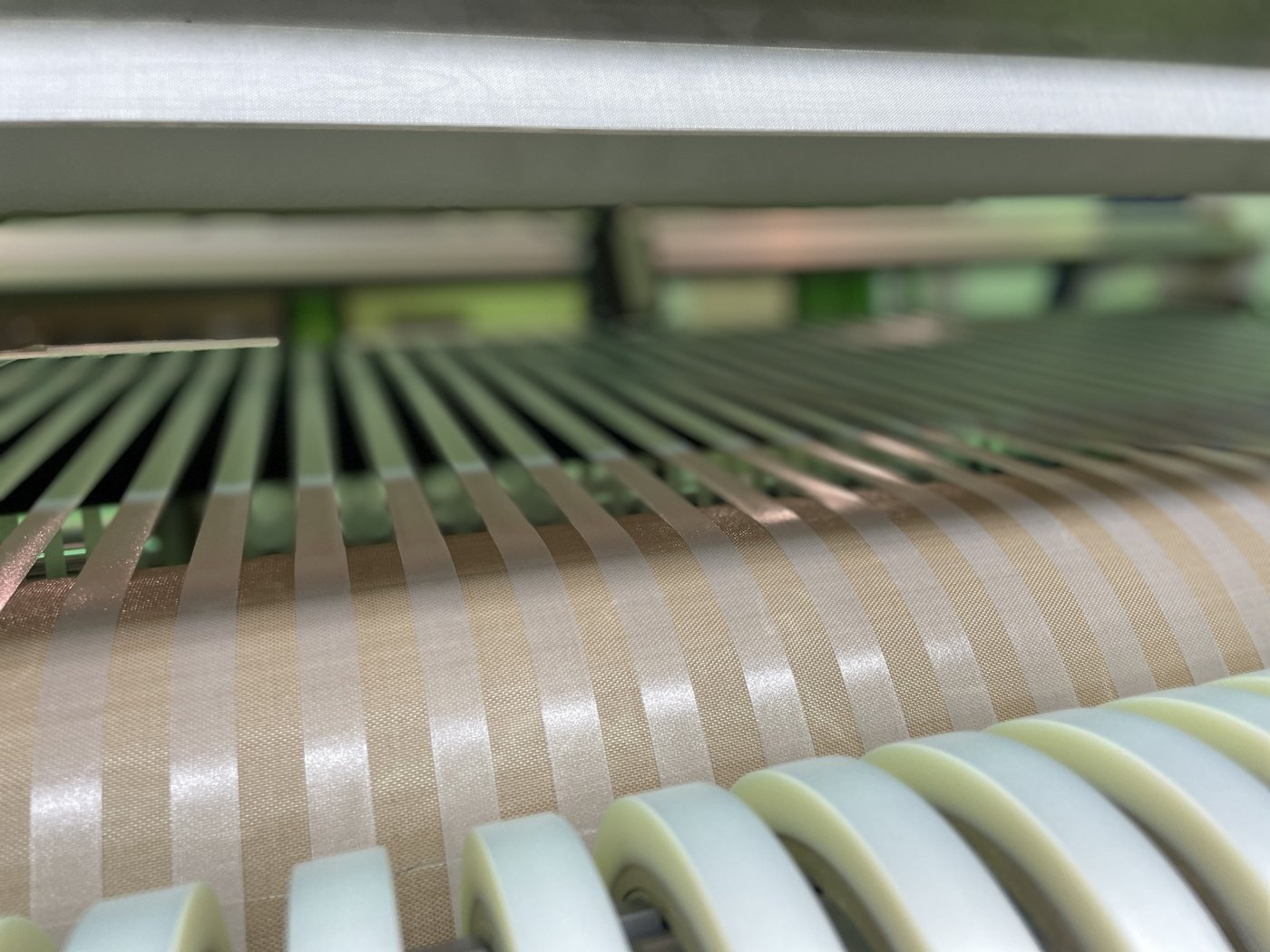

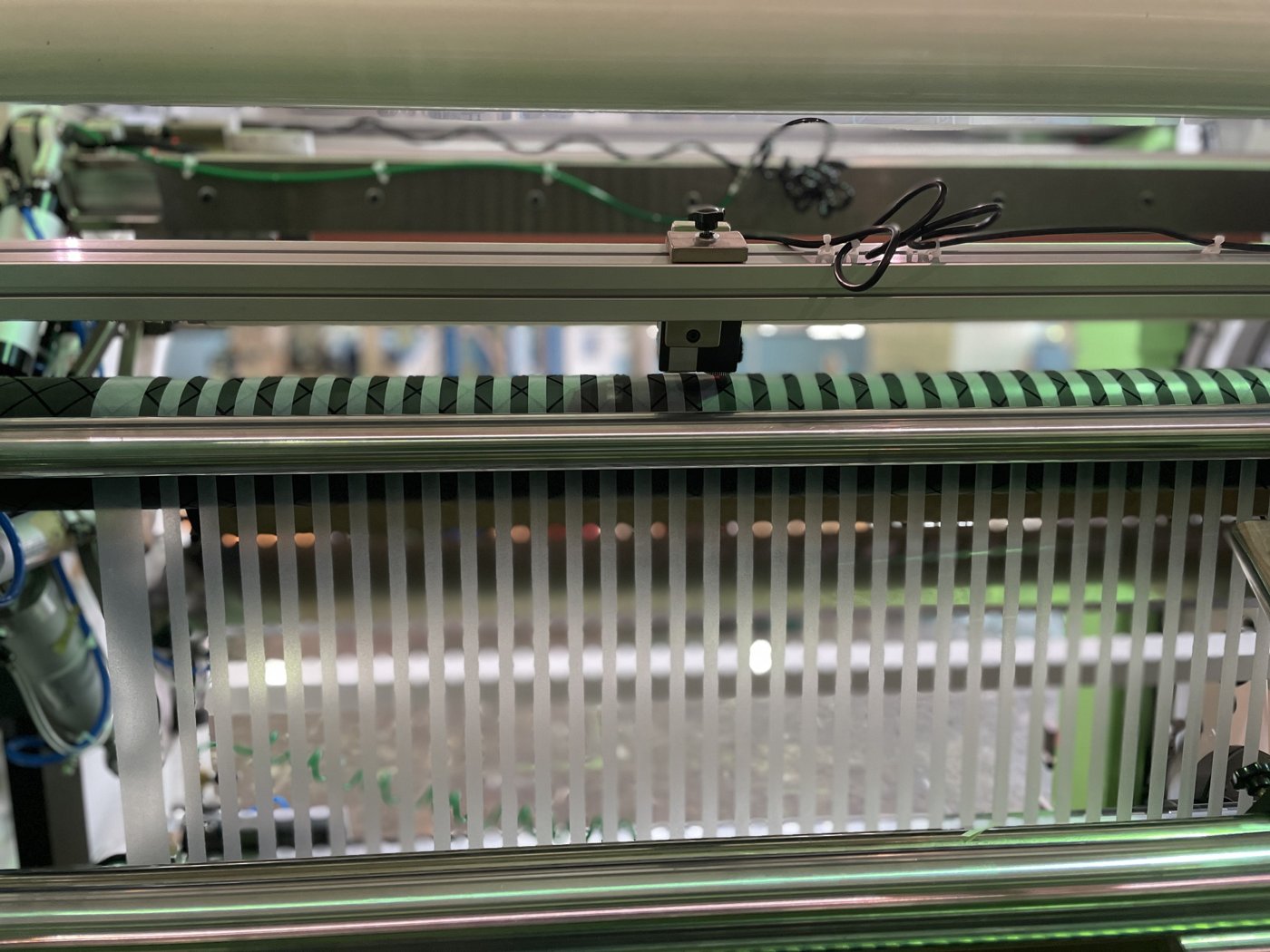

HCI official machine images — FSL-TR1300 Turret Rewind Slitter
Technical Features
FSL-TR operating principle and core technical features
Non-Stop Turret Winding
Automatic splicing + automatic web cutting + 4-shaft turret rotation system. When the pre-set length or winding diameter is reached, automatic cutting, splicing and shaft change. It enables the continuous production line to run at high efficiency.
500 m/min High Line Speed
Stable operation across the mechanical 0–500 m/min speed range. Dancer roller + load cell automatic tension control delivers consistent winding quality even under speed and diameter changes.
E+L Germany LPC Standard
E+L Germany-made LPC web guider in the standard package. Print-line / edge dual-mode high precision. The unwind unit moves ±75 mm horizontally.
15" Color HMI + Intelligent Control
15 inch color LCD touchscreen. Graphical interface, production mode selection (manual/semi/fully-automatic), remote connection, parameter memory 99 units, slit width adjustment function.
Shaftless Unwind Stand + Hydraulic Up/Down Movable
Compact-type hydraulic up/down unwind stand. The left and right arms are motor-driven, with a pneumatic chuck (3 inch quick lock) for fast main roll gripping. Hydraulic lift from floor to working position. An additional remote control panel on the unwind side.
Dancer Roller + Load Cell Unwind Tension Control
Unwind dancer-roller system in the standard package. Low-friction rollers (2 pcs) + linear potentiometer. Drive by AC Vector 15HP + inverter. Combined load cell + dancer control delivers stable tension across the entire speed range.
E+L Germany LPC Film Guider (Standard)
E+L Germany-made LPC web guider in the standard package. Print-line + edge dual-mode high-precision tracking. The slitting position is guaranteed via the ±75 mm horizontal movement of the unwind unit.

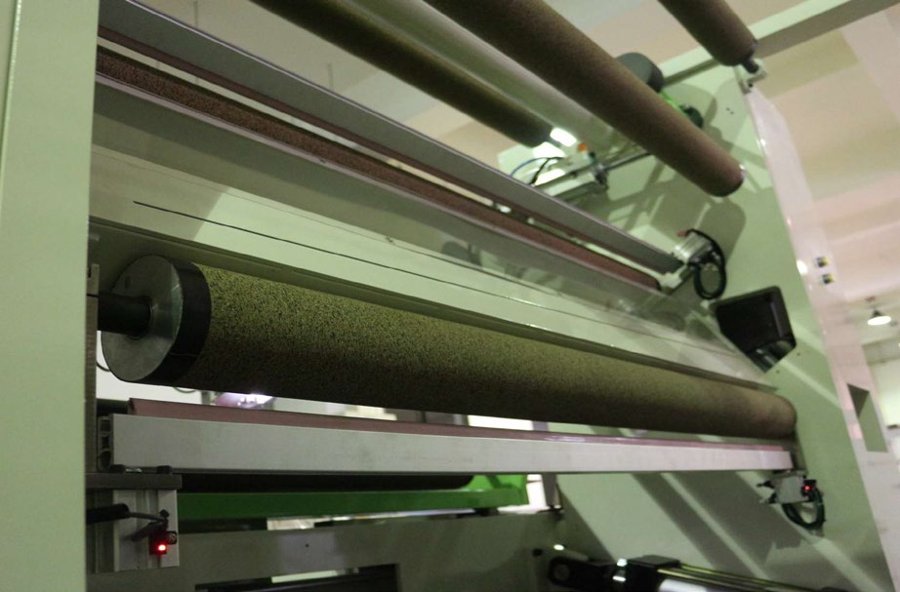

Unwind-Side Splicing Table
Unwind-side splicing table + tape dispenser + reflective mirror in the standard package. Manual splicing is accelerated, material changeover is practical.
4 Independent Vector Motors + Drive (Inverter)
Main motor 15HP vector + 2 sets rewind motor 10HP vector + 3 sets vector inverter. The upper rewind, lower rewind and main drive roller are independently motorized — turret rotation is a separate AC 1HP motor + magnetic clutch × 4.

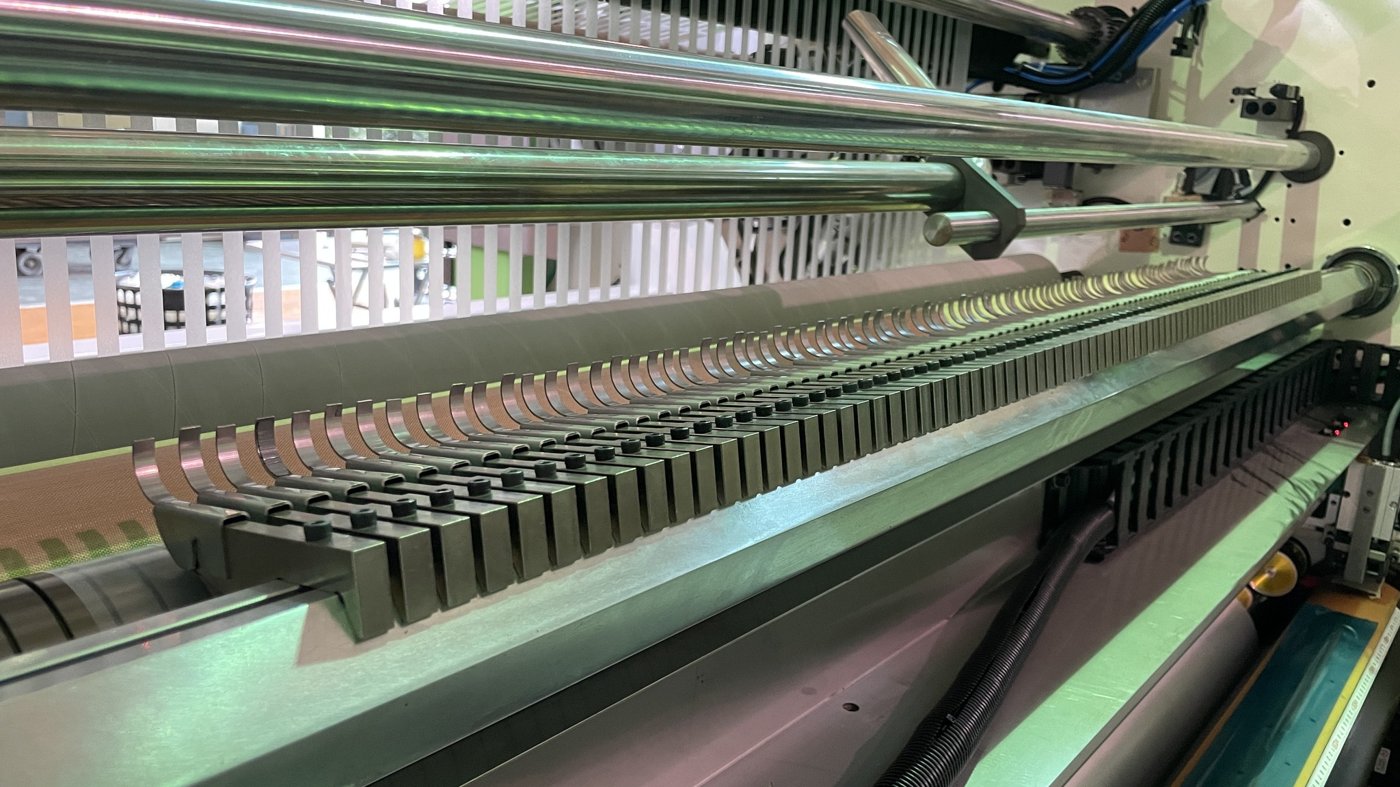

Dual Cutting: Groove-Roller Razor + Shear Knife (10 sets + spacers)
Shear cutting unit Ø118 × 92 (10 sets) + aluminum spacer (6, 15, 20, 30, 40, 50, 100 mm × 6 pcs) + razor-in-groove cutting system (groove roller + 10 razor cutting units). Knife setting is done from the front.
Automatic Splicing Device (Servo Motor, 1300W + 400W)
Automatic splicing device in the standard package. Servo-motor 1300W transfer roller + 400W slideway motor. Adhesive tape transfer roller + release liner rewind (200 mm). The line does not stop during roll change.

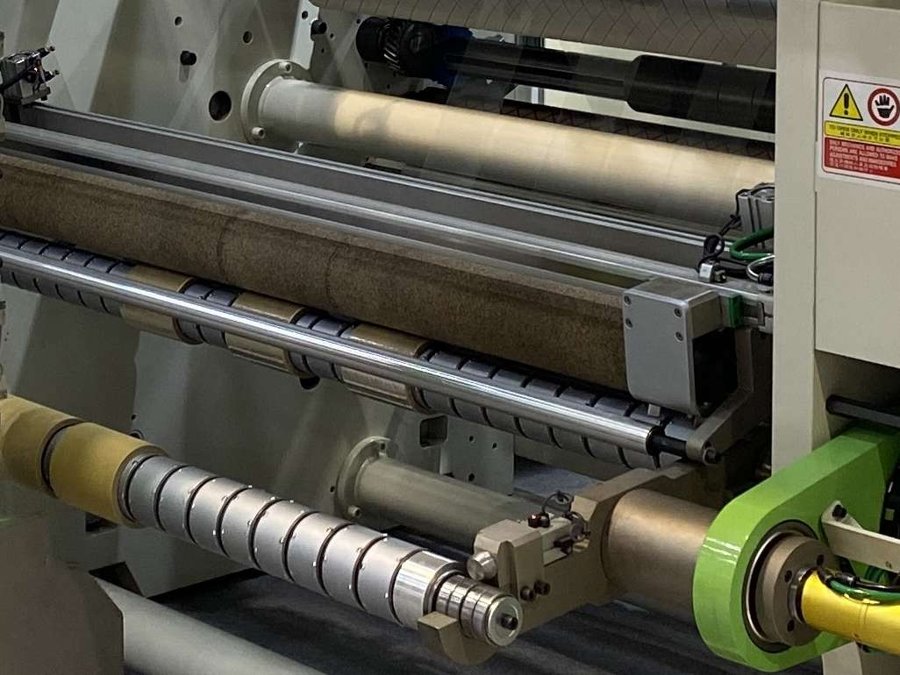

Automatic Film Cutting Device (Flying Knife + 2 Sets Nip Roller)
Automatic film cutting device in the standard package. 2 sets of nip rollers + 2 sets of flying-knife cutting units. It works synchronized with automatic splicing, production continuity is top-level.
Turret Winding System (Patent No. M620523, 4 Shafts + Rotation)
4 sets of ball-type quick lock winding shaft (104 pcs 50mm ball lock rings) + AC 1HP turret rotation motor (with positioning brake) + magnetic clutch × 4 + 2 sets 1HP reverse-rotation motor. Pre-set length/diameter → automatic cutting, splicing, shaft change.

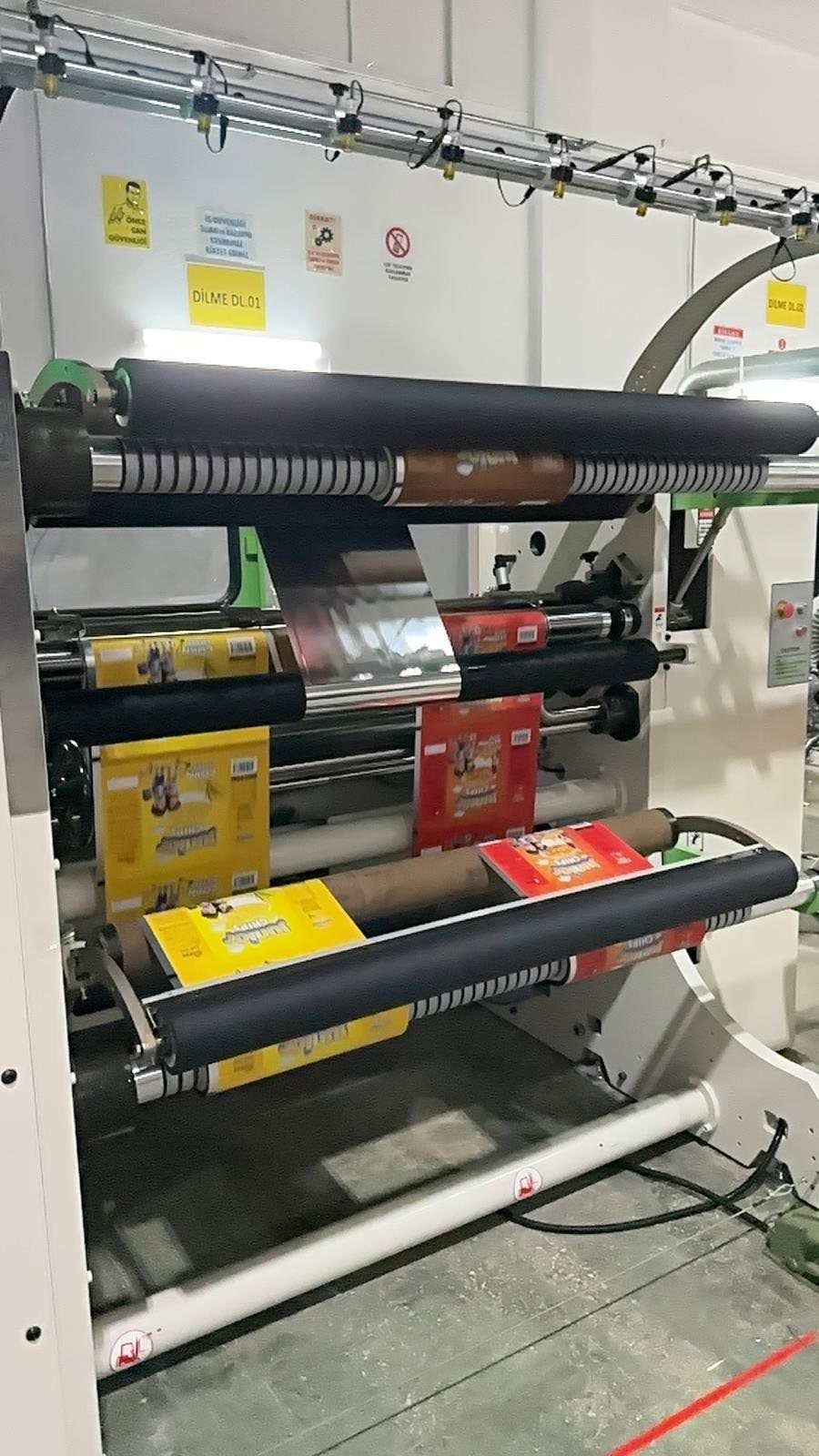

Pneumatic Lay-On Winding Roller (2 Sets)
Full-width pneumatically loaded lay-on roller system (2 pairs). Interchangeable roller set: rubber 30 Shore (3 inch × L1300, for thin and irregular-thickness film) + cork-tape-wrapped aluminum (for regular plastic film). Gravity or pneumatically loaded dual mode.
Finished Roll Pusher (Servo 1800W) + Paper Core Positioning
Servo-motor 1800W driven finished roll pusher + 3 inch core auxiliary pusher. Pneumatic paper core positioning system for roll widths of 100mm and above (2 sets pneumatic clamp + 2 sets positioning plate).
Automatic Turret + Up/Down Discharge Unit (Standard)
Automatic turret / up-down type discharge device in the standard package. 2 pcs 3 inch discharge shaft (1000mm) + automatic swing-out (1HP swing-out motor + positioning brake) + shaft rotation (2HP + brake) + up/down (2HP motor).

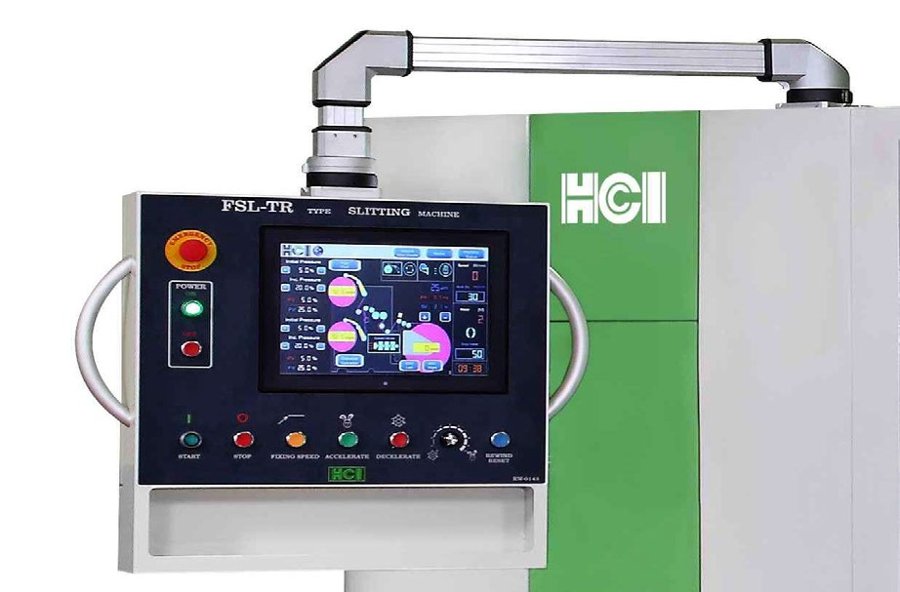

PLC + 15" Color HMI Touchscreen + 99 Recipe Memory

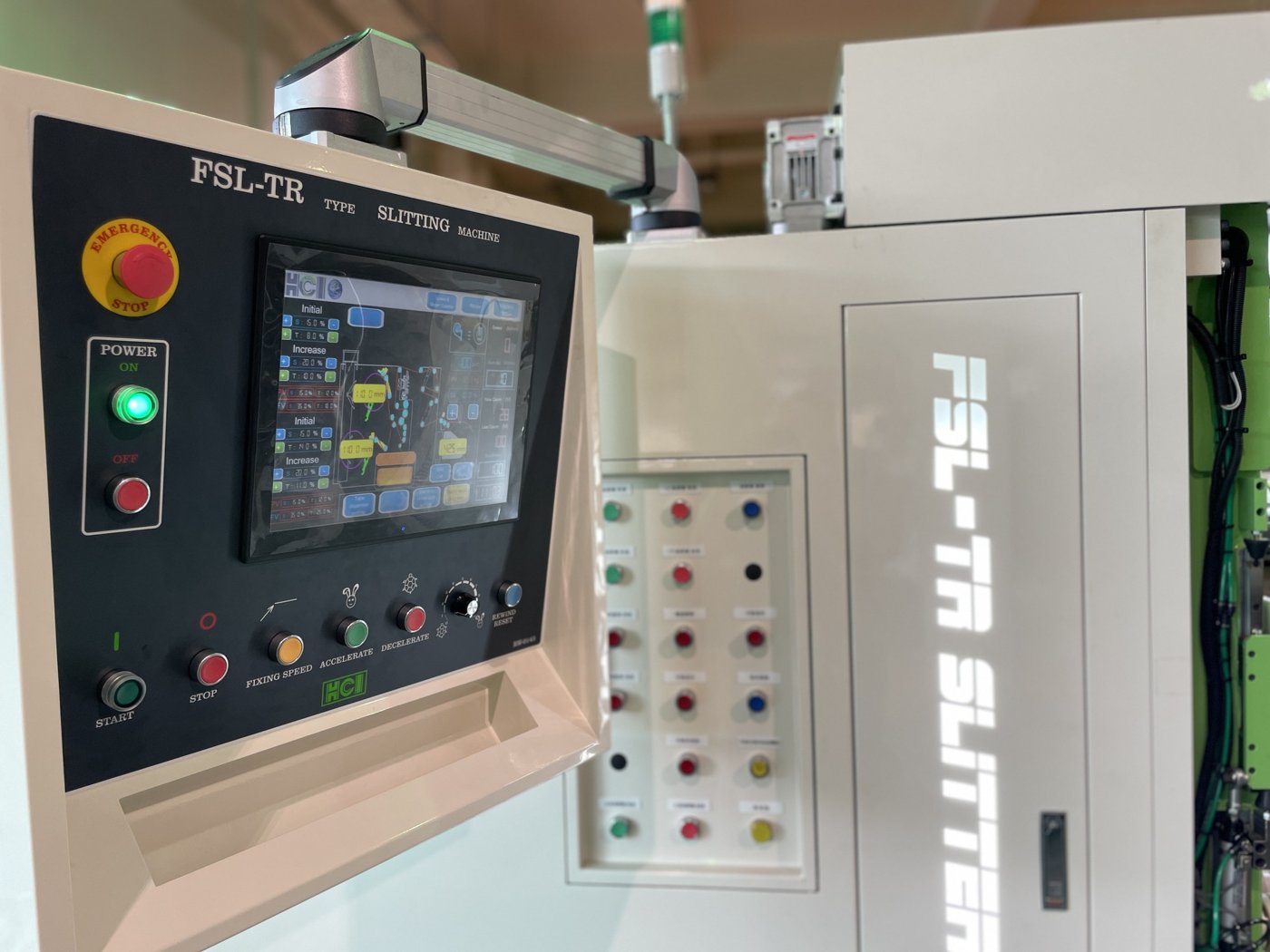

15 inch color LCD touchscreen. Automatic unwind/rewind tension control, automatic splicing/web cutting control, turret rotation control, finished roll pusher + paper core positioning control, automatic stop on material break, recipe memory 99 units.
Anti-Static Brush × 2 Sets + Vacuum-Type Trim Removal (3HP Blower, Standard)
2 sets of anti-static brush (before upper/lower rewind). Vacuum-type trim disposal + 3HP blower fan. Clean working environment + static discharge.
Technical Specification
Specification Table
FSL-TR1300 — HCI Converting Equipment technical features
| Specification | FSL-TR1300 New Generation Turret Rewind Slitter |
|---|---|
| Mechanical Speed (m/min) | 0 – 500 |
| Unwind Unit | Shaftless + Pneumatic Chuck + Left/Right Floating + Hydraulic Up/Down |
| Paper Core Inner Diameter (mm) | 76 / 3" or 152 / 6" (Optional) |
| Film Width (mm) | 320 – 1,300 |
| Max. Unwind Reel Diameter (mm) | 1,000 |
| Unwind Tension System (Standard) | Dancer Roller + Load Cell + AC Vector 15HP Drive (Inverter) |
| Film Guiding System | E+L Germany LPC (Standard) — Print Line / Edge |
| Guider Travel Range (mm) | ±75 |
| Slitting Methods | Groove-Roller Razor + Shear Knife Cutting Ø118 × 92 (10 sets) |
| Trim Collection | Vacuum-Type Trim Removal + 3HP Blower Fan (Standard) |
| Min. Slit Width (mm) | 50 |
| Max. Rewind Diameter (mm) | 600 |
| Number of Rewind Shafts | 4 (Turret-type rotation) |
| Automatic Splicing | Standard (Servo-motor 1300W transfer + 400W slideway) |
| Automatic Web Cutting | Standard (Flying knife + 2 sets nip roller) |
| Winding Shaft (Standard) | Ball-Type Quick Lock × 4 sets + 50 mm ball ring × 104 pcs. |
| Lay-On Roller | 2 sets full-width pneumatic lay-on (Rubber 30 Shore + Cork-taped aluminum) |
| Finished Roll Pusher (Standard) | Servo-motor 1800W |
| Paper Core Positioning (Standard) | Pneumatic |
| Discharge Unit (Standard) | Automatic Turret + Up/Down |
| PLC + HMI (Standard) | 15" Color LCD Touchscreen + Recipe 99 units |
| Machine Dimensions (m) | 5.50 × 2.20 × 5.50 |
| Power | 220V 68A · 380V 39A · 415V 36A |
| Air Requirement | 6 – 9 kg/cm² |
| Color | Frame/Control: PANTONE 7527C white · Safety guard: bright green (custom Pantone optional) |
Standard Equipment
Units that come in the FSL-TR1300 standard configuration
Compact Hydraulic Unwind Stand
Hydraulic up/down compact unwind; load cell tension control.

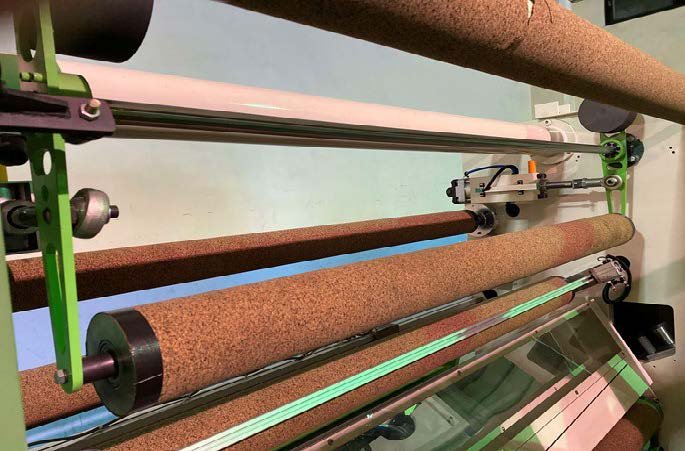

Unwind Dancer Roller System
Dancer-roller unwind tension control; stable web.

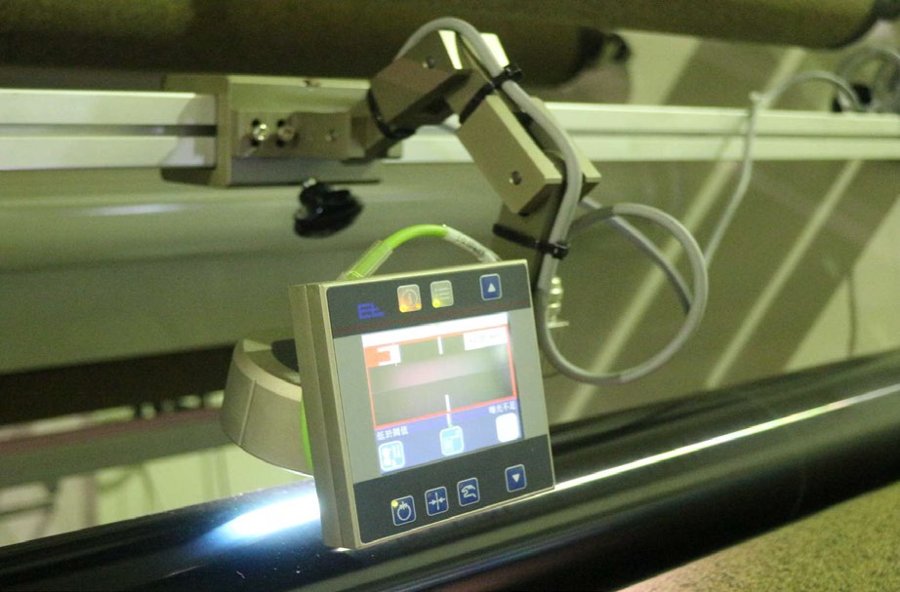

LPC Film Guider (E+L Germany)
Print-line & edge tracking web guiding (±75 mm).
Unwind Splicing Table
Splicing table with tape dispenser + reflective mirror.

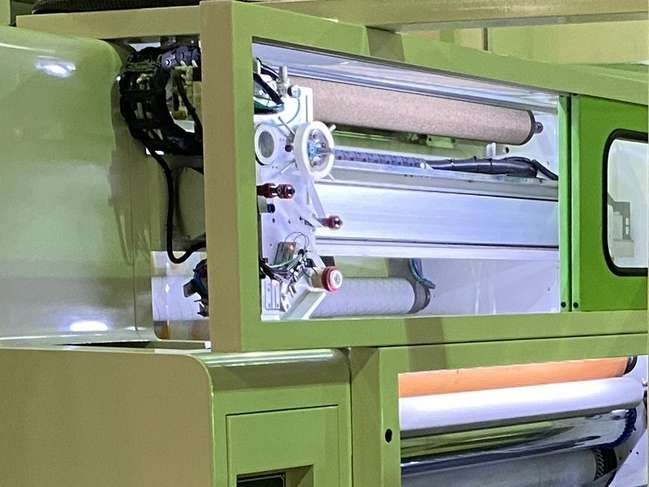

Automatic Splicing Device
Servo-driven automatic tape transfer; uninterrupted feed.
Automatic Film Cutting Device
Nip-roller flying knife automatic web cutting.

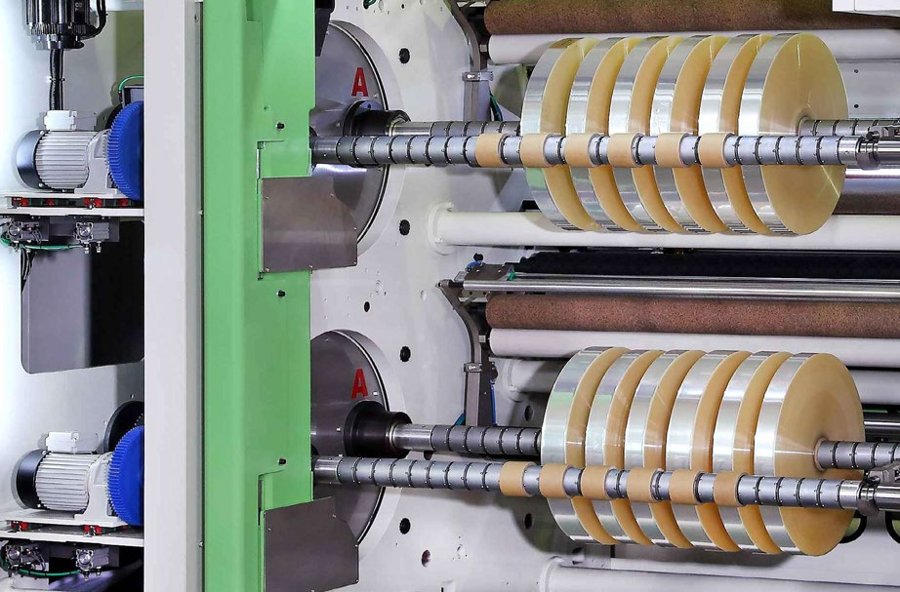

Winding Shafts Turret Rotation
Magnetic-clutch automatic turret rotation + reverse direction.

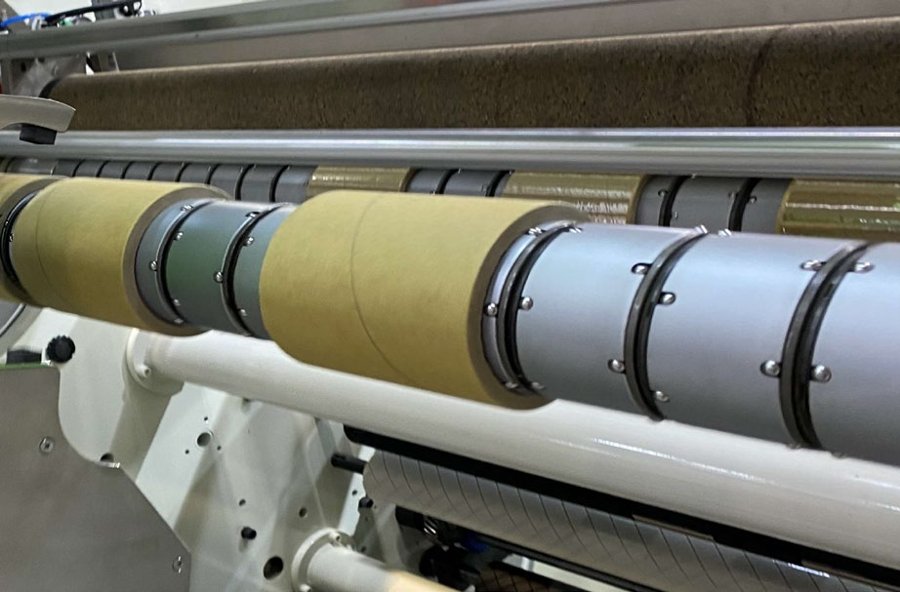

Winding Ball-Type Quick Lock Shaft
4-shaft ball-type quick lock; fast reel change.
Full Width Pneumatic Lay-On Roller
Gravity or pneumatically loaded lay-on roller; rubber + cork-tape aluminum roller options.

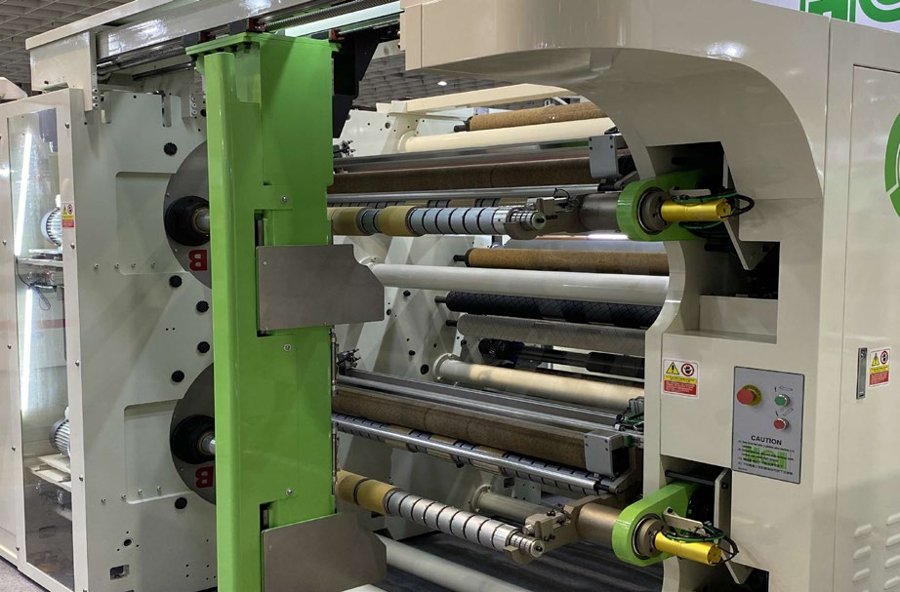

Finished Roll Pusher
1800W servo + 3" core pushing table.

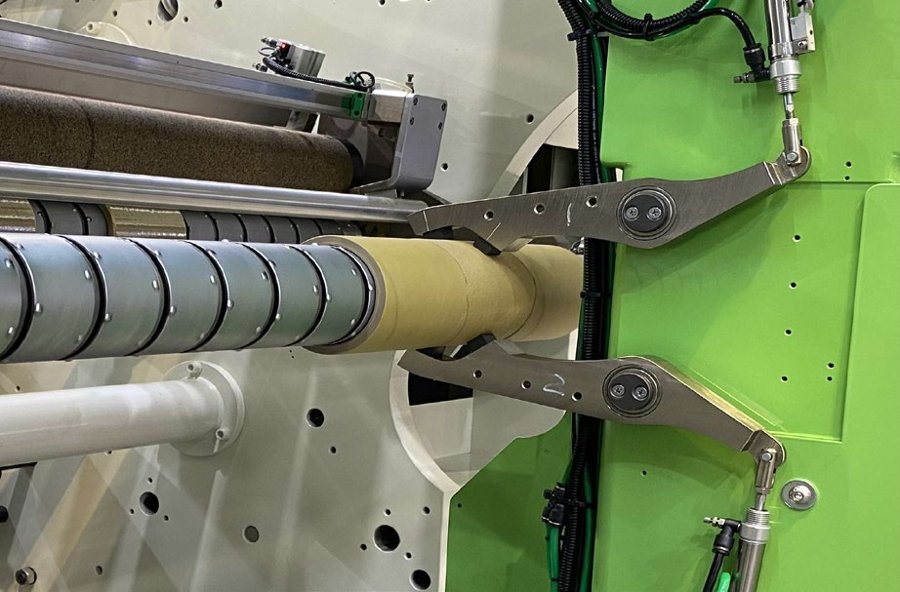

Automatic Core Positioning
Pneumatic-clamp automatic core alignment (≥100mm).

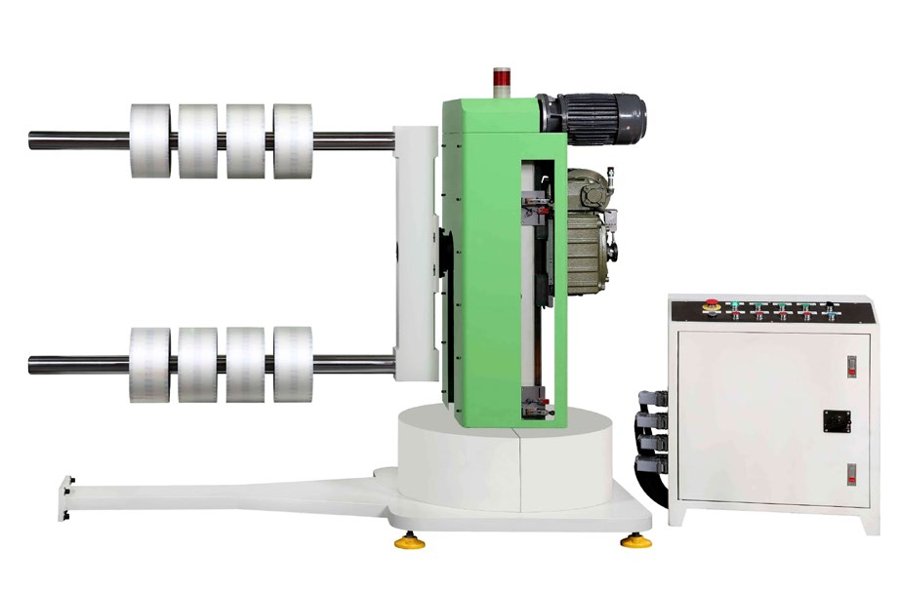

Automatic Turret Up/Down Discharge
Swing + rotation + up/down fully automatic discharge (standard).
Automatic Turret Discharge (additional view)
Fully automatic discharge unit, different angle.
PLC & HMI Control System
15" color touchscreen; tension/splice/cutting/turret automatic control, automatic stop on material break.
Modular Options
Optional items that can be added according to project requirements
6" Metal Unwind Chuck
6 inch metal unwind chuck in place of the 3" standard.

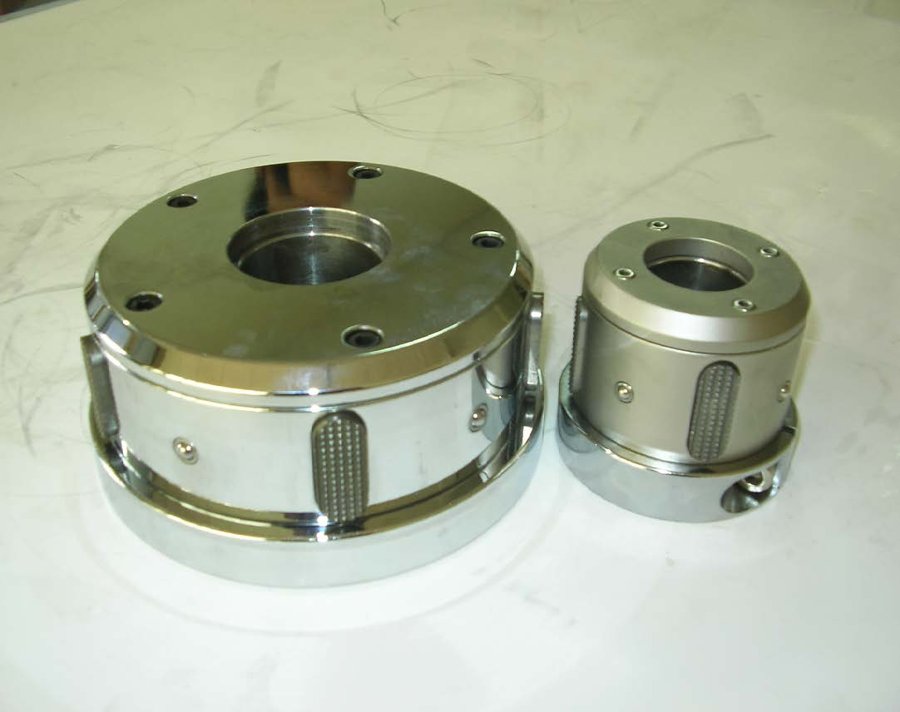

6" Quick Lock Unwind Chuck
6 inch quick lock unwind chuck in place of the 3" standard.

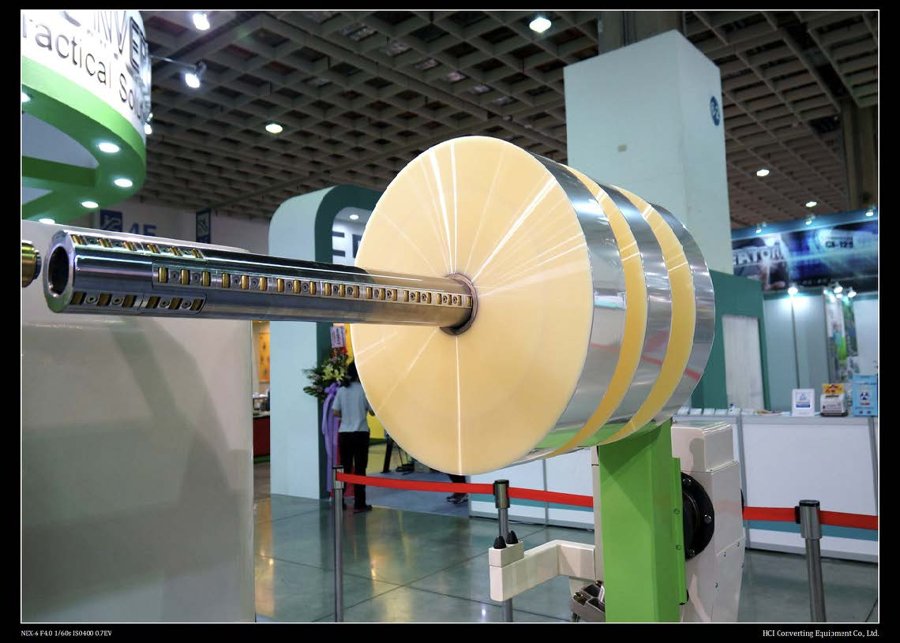

Cantilever Discharge Shaft (1000 / 1300 mm)
1000 mm or 1300 mm cantilever discharge shaft in place of the 800 mm standard.
Turret Type Discharge Stand
A turret-type discharge stand as an alternative to the automatic unit; with 3" discharge shaft (W:1000mm) + rotation/positioning unit.

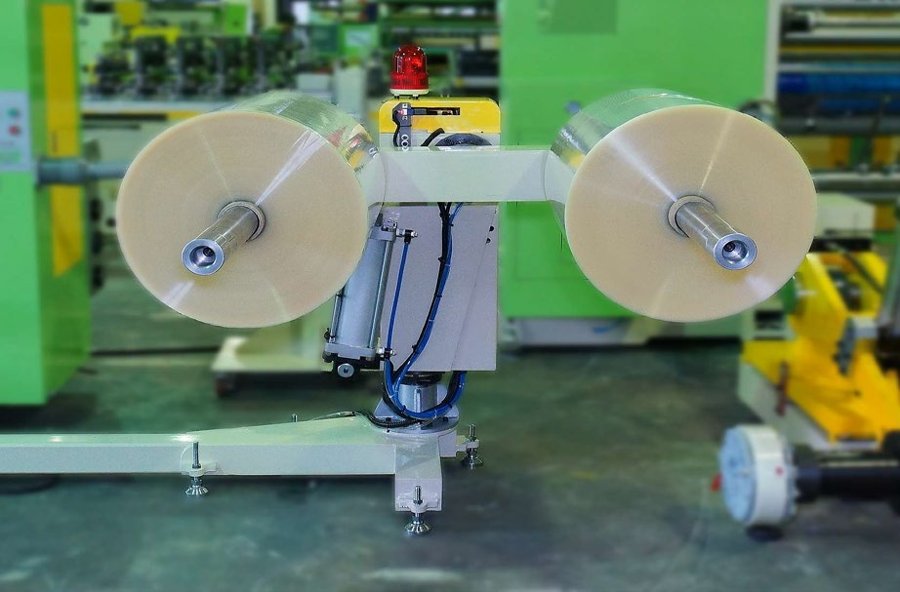

Turret Discharge Stand (additional view)
Discharge stand, different angle.
3" Cylindrical Roller Discharge Shaft
Cylindrical roller discharge shaft that reduces curled edge (W:1000mm).

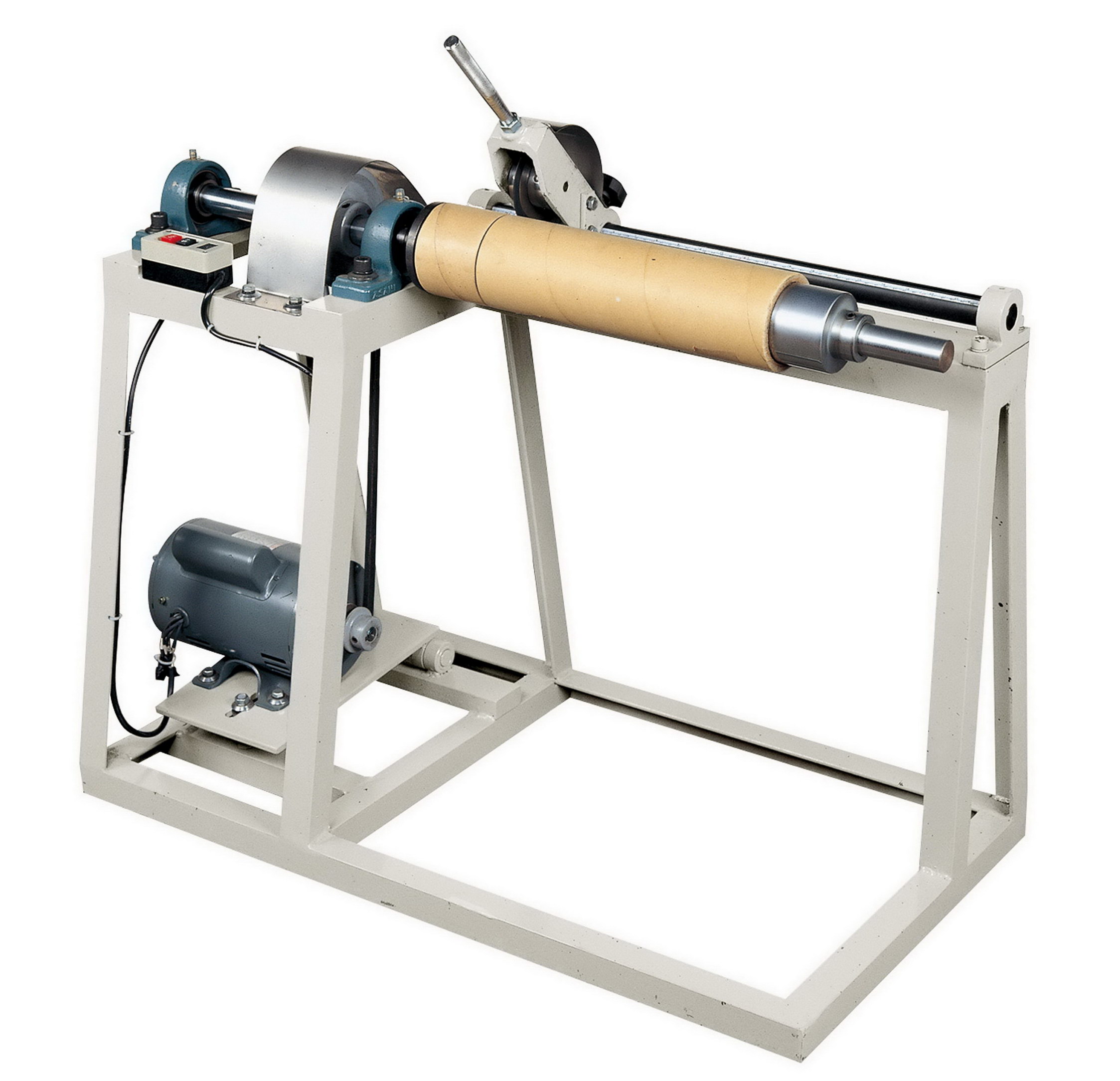

FPT-500 Core Cutting Machine
FPT-500 unit for core cutting.

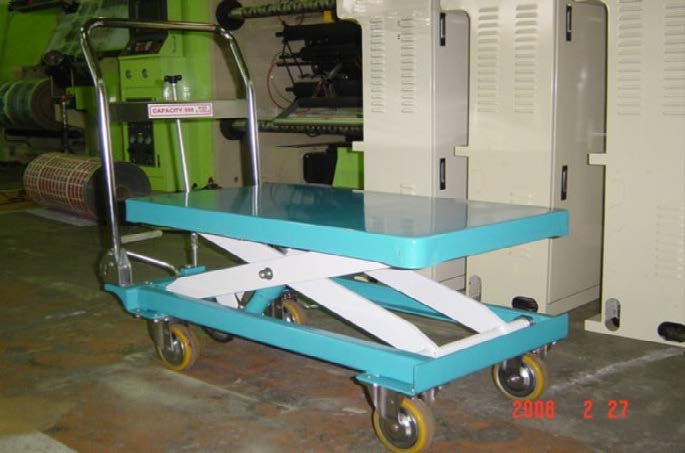

Handling Trolley
General-purpose roll handling trolley (300 / 500 / 800 kg options).

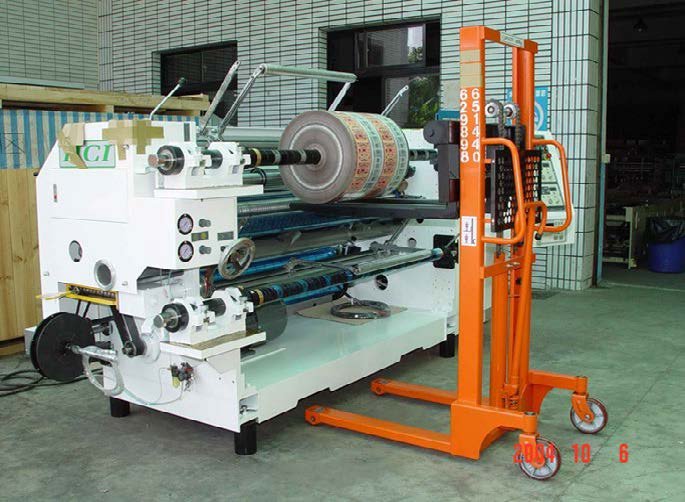

Manual Stacking Cart (1,000 kg)
Manual up/down stacking cart.
Hydraulic Pallet Truck (2.5 t)
Hydraulic pallet truck for roll handling.
Sandblasted Aluminum Lay-On Roller
3" × L1300 sandblasted aluminum lay-on roller; reduces curled edge (curl edge).
FSL-TR Video Library
Field and trade-fair footage — from the GMG Technic archive
Other Slitter Models
Other models in this category
FSL-TX
SMART Series Slitter Rewinder (Flagship)
For applications focused on advanced winding control and high efficiency.
View Details ›
FSL-T

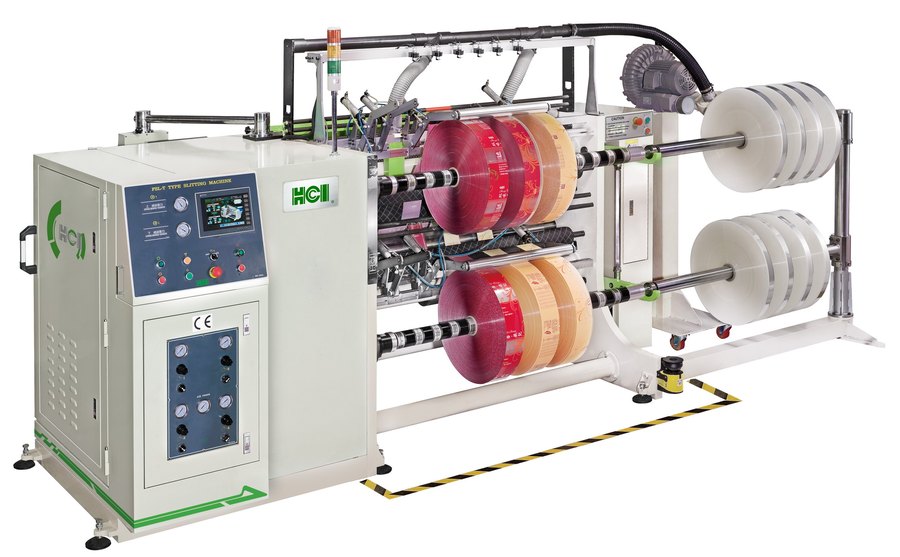

Superior Type Slitter
Universal high-precision slitter rewinder; for a wide material range and flexible slitting configuration.
View Details ›
FSL-KT
Integration Type
Unwind and rewind on the same side; an integrated solution for a single operator + compact layout.
View Details ›

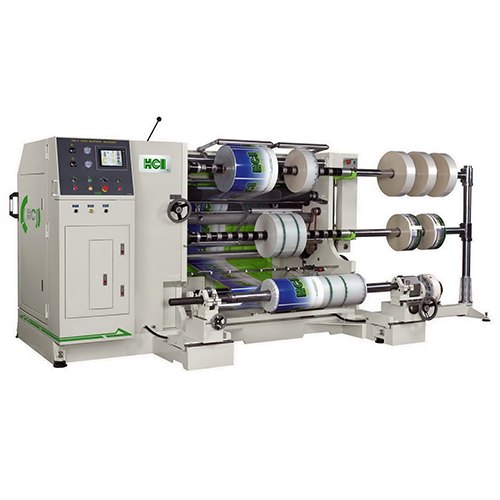

FSL-J

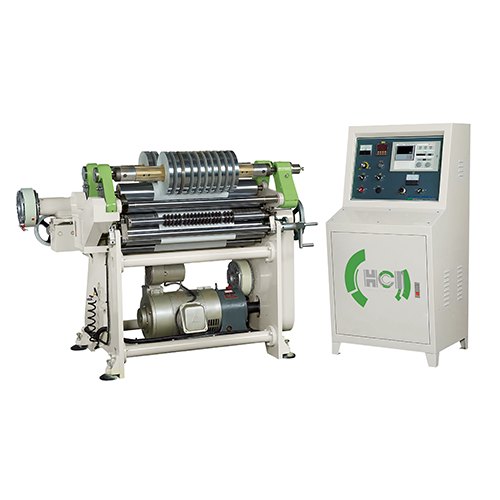

Narrow Web Compact Slitter
Narrow web, high speed; for electronic / optical material and thin film slitting.
View Details ›Complementary Machines
Other HCI Converting Equipment solutions that complement your slitting and winding line
FPT-500 Paper Core CutterPaper core cutting machine — for roll core preparation after slitting.View ›

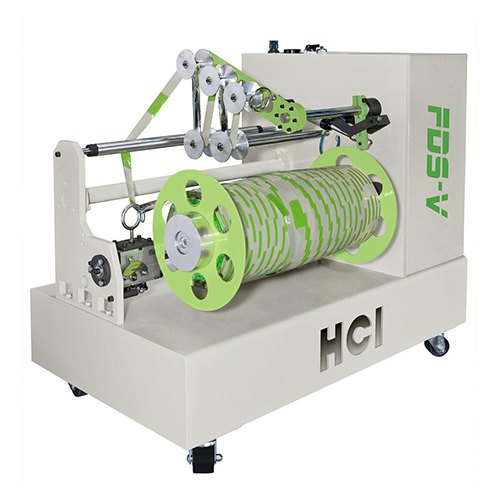

FDS-V500 Trim WinderEdge trim rewind equipment for slitter lines.View ›
Rewinding / Doctoring LinesRoll doctoring / rewinding line after the slitter line.View ›
Lamination LinesFlexible packaging lamination line — process prior to the slitter.View ›
Embossing MachinesFilm surface embossing — process prior to the slitter.View ›
PVC Shrink Sleeve LinesSeaming (bonding) and inspection line for slit-output film.View ›Quote & Contact for the FSL-TR
GMG Technic — Türkiye distributor of HCI Converting Equipment
Türkiye Distributor
HCI Converting Equipment Türkiye sales point.
Installation & Commissioning
Field installation, alignment and initial parameter calibration.
Operator Training
Operator and maintenance staff training after commissioning.
Spare Parts & Technical Support
Long-term spare parts supply and technical support.
